Single Soldier Operating 1120mm Hand Held Mine Detector Pulse Induction
Product Details:
Place of Origin: | China |
Brand Name: | HEWEI |
Certification: | YES |
Model Number: | UMD-III |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 piece |
---|---|
Price: | USD per set FOB Shenzhen |
Packaging Details: | carton package, wooden package |
Delivery Time: | 15 working days |
Payment Terms: | T/T |
Supply Ability: | 300 pieces per month |
Detail Information |
|||
Name: | Mine Detector | Operating And Storage Temperature: | -25°C~70°C |
---|---|---|---|
Operating Humidity: | Fully Enclosed And Be Able To Operate 2 M Under Water. | Battery: | LR20 Manganese Alkali Dry Cell |
The Detecting Pole Length: | 1120mm~1560mm | Weight: | 3kg |
High Light: | pulse induction hand held mine detector,single soldier hand held mine detector,1120mm hand held mine detector |
Product Description

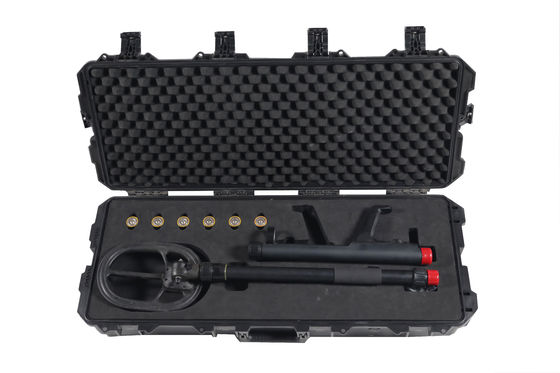

Hand-held (single-soldier operating) metal detector, mine detector
Mine Detector
Introduction
UMD-III mine detector is a widely used hand-held (single-soldier operating) mine detector.It adopts high frequency pulse induction technology and it is highly sensitive, especially suitable for detecting minor metal mines. The operation is simple, so the operators can use the device only after a short training.
Features
The mine detector is waterproof, which can be detected under water. It is controlled by a microprocessor with accurate timing, fast conversion and strong signal processing capability. The mine detector has a strong sensitivity to identify very small metal objects.
Technical Parameters
Weight | 3kg |
Transport weight | 12.3 kg |
The detecting pole length | 1120mm~1560mm |
Battery | LR20 Manganese alkali dry cell |
Battery life |
At maximum sensitivity - 12 hours At medium and low sensitivity - 18 hours It alarms by sound and light emitting diode when the voltage is under voltage. |
Detection sensitivity | 0.05g. Stainless steel at 75mm distance from the probe |
Operating humidity | Fully enclosed and be able to operate 2 m under water. |
Operating and storage temperature | -25°C~70°C |

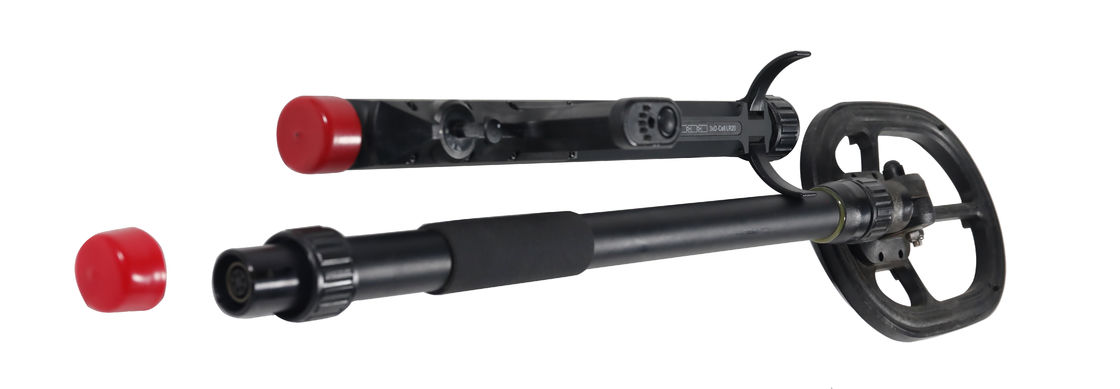

The detecting coil | The longest detecting pole is 1120mm, the shortest is 700mm, and weighs 1100g. Glass resin telescopic rod, the surface is coated to protect the environment.The diameter of detecting coil is 300mm, black ABS material, surface is treated with EMC, and a hybrid RX coil is used to improve the signal/noise ratio. |
