Amorphous Silicon Sensor Pixel Pitch 154um Portable X Ray Scanner
Product Details:
Place of Origin: | China |
Brand Name: | HEWEI |
Certification: | YES. CE certificate |
Model Number: | HWXRY-04 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD 15500~37000 |
Packaging Details: | wooden package, carton package, size : 72*31.5*46.5cm |
Delivery Time: | 15-30 working days |
Payment Terms: | T/T |
Supply Ability: | 30 sets per month |
Detail Information |
|||
Sensor Type: | Amorphous Silicon | Imaging Area: | 433.7 X 354.4 Mm2 |
---|---|---|---|
Pixel Pitch: | 154 μm | Pixel Array: | 2816X2304 |
Gray Scale: | 16 Bits | Limiting Resolution: | 3.3 Lp/mm |
Dynamic Range: | >780dB | Communication Interface: | GbitE |
Operating Environment: | Natural Cooling | Storage Temperature: | -10℃-55℃ |
Size: | 460x384x15mm3 | ||
High Light: | 154um portable x ray scanner,amorphous silicon sensor portable xray scanner,amorphous silicon portable x ray scanner |
Product Description
Portable X-ray Scanner System
Model:HWXRAY-04
Description
This device is a light weight ,portable,battery powered x-ray scanning system designed in co-operation with the first responders and EOD teams to meet the need of the field operative. It is light weight and comes with user friendly software that helps operators in understanding the functions and operations in a less time.

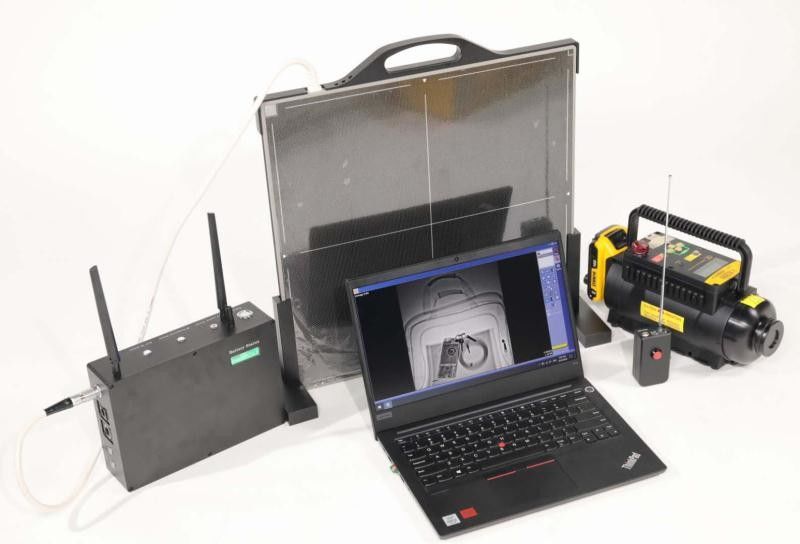

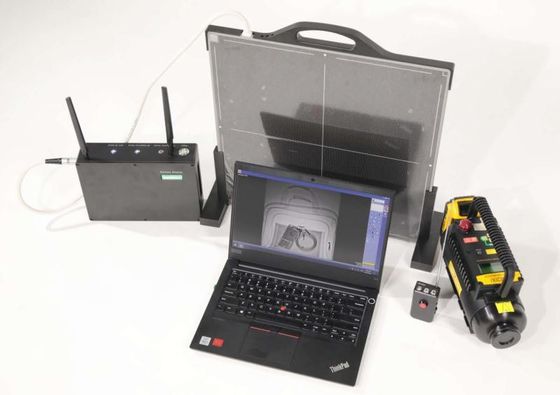

The system comprises
|
Image Panel | 1 |
|
X-ray Generator | 1 |
|
Laptop | 1 |
|
Module Box (For Power Supply and Communication System) | 1 |
|
Ethernet Cable | 1 |
|
X-ray Wire Controller with cable(20m) | 1 |
|
X-ray Wireless Controller | 1 |
|
Image Panel Charger | 1 |
|
X-ray Generator Charger | 1 |
|
Laptop Adapter | 1 |
|
Storage Box | 1 |
|
Manual | 1 |
