• Portable Uav Detection And Jamming System Detecting Orientation And Model Of Drone
Portable Uav Detection And Jamming System Detecting Orientation And Model Of Drone

Portable Uav Detection And Jamming System Detecting Orientation And Model Of Drone

Product Details:

Place of Origin: CHINA
Brand Name: HEWEI
Certification: YES
Model Number: GTUS-IIP

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD/Set FOB shenzhen
Packaging Details: carton case
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Module Type: High-precision L1, 15 Dual-frequency GNSS Receiving Module Position System: Beidou, GPS
PPS Search Accuracy: ±15ns Maximum Speed: 515m/s
Speed Accuracy: 0.1m/s Dynamic Heading Angle Accuracy: 0.3
Communication Method: UART Communication Frequency Band: 490MHz
High Light:

model drone detection system


drone orientation uav detection systems


drone detection equipment portable

Product Description

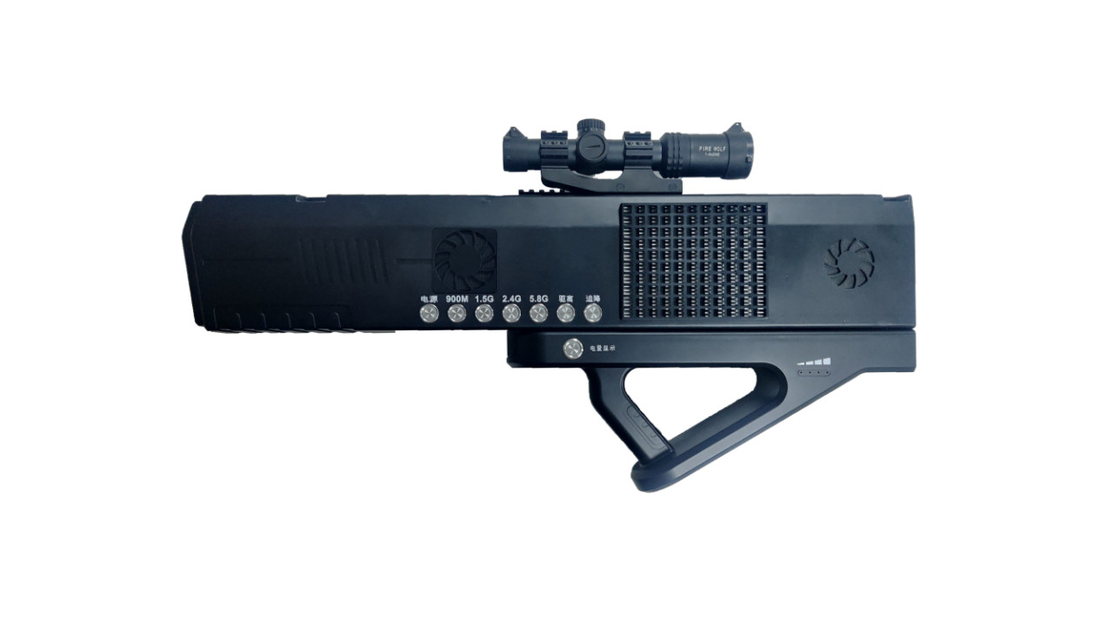

Portable UAV Detection & Jamming system





The system is equipped with a 2.8-inch bright IPS LCD screen, which has the function of detecting the orientation and model of the drone, and has the function of interfering with the frequency band used by the drone, which can drive the drone away or force the drone to land, and completely cut off the contact between the drone and the remote control or the ground station to ensure the safety of the low-altitude airspace in the region. Compared with common portable control equipment, this device adds device positioning and networking functions, and can link the back-end command system to facilitate the background command personnel to make transfers according to the distribution of equipment.


Portable UAV detection and jamming systems are designed to detect and, if necessary, mitigate the presence of unmanned aerial vehicles (UAVs), also known as drones, in a specific area. These systems are typically used for security purposes to protect sensitive locations, such as airports, critical infrastructure, or public events, from potential threats posed by unauthorized or malicious drone operations.



Technical Specification


Position Function Parameter
Module type High-precision L1, 15 dual-frequency GNSS receiving module
Position system Beidou, GPS
PPS search accuracy ±15ns
Maximum speed 515m/s
Speed accuracy 0.1m/s
Dynamic heading Angle accuracy 0.3
Networking function parameters
Communication method UART
Communication frequency band 490MHz
Transmission power 1w
Transmission distance 2km
Encryption method AES dynamic encryption
Detection technical parameters
Detection frequency Dual frequency 2400~2485MHz, 5150~5950MHz
Detection antenna gain 2dBi
Detection power consumption ≤5W
Detection mode Omnidirectional detection, directional detection
Detection distance 1-2km
Number of detections Multiple targets
Detection and identification Commonly used UAV types
Warning mode Sound, vibration
Jamming technical parameters
Operating frequency 900 ~ 930MHz, 1550 ~ 1620MHz, 2400 ~ 2500MHz, 5715 ~ 5850MHz
Output power 140W
Signal style DSSS(spread spectrum) /FHSS (frequency hopping)
Battery capacity 2 pieces of 7000mah lithium batteries
Endurance ≥30 minutes (continuous launch); ≥120 minutes (30s launch and 90s stop)
Product weight About 4.6kg
Product size Host: 690*300*80mm
Working mode Expel/Forced land mode; Each module can be individually controlled on and off
Screen configuration 2.8-inch high-lighted IPS screen
scope magnification Maximum 4 times
Jamming distance Flight height 100m: control distance ≥1700m, flight height 200m: control distance ≥2000m
