Portable Multi Band Bomb Disposal Equipment Remote Controlled Radio Device
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HWBJ-IV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | USD/Set FOB shzenzhen |
| Packaging Details: | carton case |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| 20-80MHz: | Toy Remote Control | 80-300MHz: | VHF Frequency, Remote Controller |
|---|---|---|---|
| 300-800MHZ: | UHF Frequency, Remote Controller | 800-1000MHz: | 2G-3G-CDMA800/GSM900MHz |
| 1000-2000MHz: | DCS1800/CDMA1900MHz/4G-TLE | 3000-6000MHz: | All 5.8Ghz WIFI |
| Operating Mode: | Easy ON/OFF Button, OLED Display Showing Battery Level | ||
| High Light: | eod equipment,bomb equipment |
||
Product Description

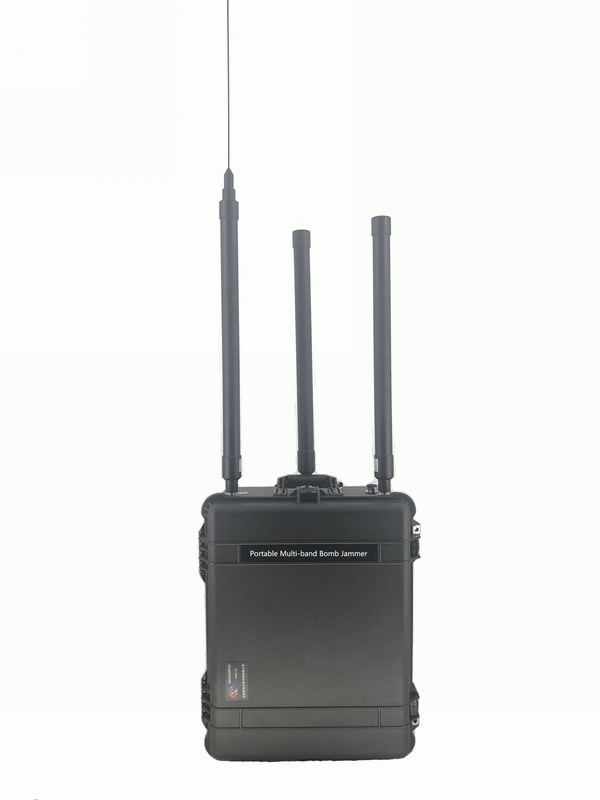

Portable Multi-band Bomb Jammer
Model: HWBJ-IV
Introduction
This product is designed with small volume, light weight, which is convenient for the individual soldier to carry. This device is capable of carrying out defensive interference against terrorists and criminals, simple remote-controlled radio devices commonly used and remote-controlled explosive devices improvised from wireless communication tools.
Application
Bomb Disposal Squads, Special Police (S.W.A.T.), VIP Protection, Military Security Forces, Anti-terror Units, Bomb Squads, Anti-drug Units, Border Control Units, Checkpoint Personnel, these types of law enforcement personnel who benefit greatly from the deployment of any these best-in-class portable EOD jammer system.
Technical Data
| No | Parameter | ||||
| 1 | Frequency range | Frequency range | Power | Antenna | Interfering target |
| 20-80MHz | 25 W |
A: Fibre-glass epoxy antenna |
Toy remote control | ||
| 80-300MHz | 25 W |
B: Fibre-glass epoxy antenna |
VHF frequency, Remote Controller | ||
| 300-800MHZ | 25 W |
C: Fibre-glass epoxy antenna |
UHF frequency, Remote Controller | ||
| 800-1000MHz | 50 W |
Built-in directional array antenna |
2G-3G-CDMA800/GSM900MHz | ||
| 1000-2000MHz | 50 W | DCS1800/CDMA1900MHz/4G-TLE | |||
| 2000-2500MHz | 50 W | 3G-WCDMA, CDMA2000, 4G-LTE | |||
| 2500-3000MHz | 50 W | WIFI, Toy remote control, 4G-TLE | |||
| 3000-6000MHz | 25 W | All 5.8Ghz WIFI | |||
| 2 | Operating mode | Easy ON/OFF button, OLED display showing battery level | |||
| 3 | Transmitting power | 300W | |||
| 4 | Power Consumption | MAX. 700W | |||
| 5 | Power | AC220V/DC24-26V | |||
| 6 | Working time | Built-in DC24V&30AH can support continuous working for 60 minutes | |||
| 7 | All the time working in AC mains. | ||||
| 8 | Built-in charger | 29.5V&2A Maximum charging time is 5 hours | |||
| 9 | Weight (Contain antenna) | 35kg | |||
| 10 | Outer Case | Pelican 1660, IP65 | |||
| 11 | Reliability & Maintainability | MTBF≥1000 hours, MTTR≤1 hour | |||
