Product Details:

Place of Origin: Made-in-China
Brand Name: HEWEI
Model Number: HWRZ-3000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD per piece FOB Beijing
Delivery Time: 15 working days
Payment Terms: T/T, L/C
Get Best Price Contact Now

Detail Information
Dimension: 22.4*13.0*6.5cm Weight: 800gram
Power Supply: Two Rechargeable Li Batteries Display Screen: 7 Inch IPS HD Anti-blast Screen,1280x1042piexl
Filter UV Spectral: UVA (254nm), UVC (365nm)
High Light:

straight tactical folding ladder

,

lightweight tactical folding ladder

,

high strength tactical folding ladder

Product Description

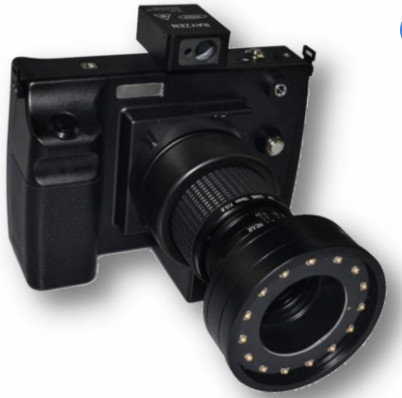

 Ultra-Wide Spectrum Forensic Camera




Introduction


The ultra large scientific research level image sensor is used to photograph, fix, record and collect the fine evidence in the crime scene of non permeable objects such as fingerprints, blood traces, footprints, saliva, semen spots, etc. with a spectral response range of 180 ~ 1100nm, it has high sensitivity and super weak trace search ability.

The system uses a 7-inch high-definition touch screen for search and observation,automatic focusing and one key photo taking. UV and IR lens and light source color filter system adopt fast installation and disassemble design. The system is compact, easy to use and can be operated by a single person, which greatly facilitates the on-site evidence collection work of the front-line criminal investigation police.



Ultra-Wide Spectrum Forensic Camera With High Sensitivity 0






Technical Parameters


Spectrum corresponding range


180nm-1100nm; Average sensitivity of UV region is 70%, especially up to 60% at 254nm and 55% at 365nm.

Sensor


A high sensitivity ultraviolet enhanced scientific CMOS sensor is used.
The single frame resolution is 2048 * 2048. The imaging target size is 2 inches diagonal, and the pixel size is 11μM.

Image Processing


Auto. According to different recording and imaging object, the parameters such as image brightness / contrast / gamma value are automatically adjusted to realize real-time image processing and improve image quality from the source.

Shutter type


Electronic shutter, exposure time adjusted automatically or manually.

Video & Image output


1080p 25 frames/s real-time video & image output, 2048 * 2048 ,4million pixels real-time single frame photography

Focal length / Passing wavelength


78mm/f2.0 fully compatible quartz lens, through the wavelength of 180nm-2000nm, 5 meters to search for large-scale trace evidence search, discovery, location and camera.

Achromatic correction


Color correction, UV / Vis / IR correction, transparent and sharp image

Macro shooting


From 15cm to infinity, large area search, footprints shooting, fingerprint full screen, and file inspection details zooming, the whole process of imaging can be achieved by adjusting the focus.
Display screen7 inch IPS HD Anti-blast screen,1280x1042piexl
Filter UV spectralUVA (254nm), UVC (365nm)
Filter Visible spectral410nm,450nm,500nm,550nm,600nm,650nm

Filter IR spectral
UV light


700nm,850nm
Integrated design, small volume, special short wave led UV lamp.

Video Recording format


RAW / AVI non compressed format video recording, super speed SDHC card for video and image data recording and storage.

Image format


HD video recording: AVI / RAW format;
Taking single: BMP, JPEG, TIF and other formats.

Real time image enhancement


Provide real-time deduction function of background interference when shooting fingerprint evidence.

System upgrade


Offline or online system upgrade can be realized through the fuselage network port or SD card, and the system performance can be improved intelligently.

Power supply


Two rechargeable Li batteries; Single battery working time is up to 4hours.
Dimension22.4*13.0*6.5cm
Weight800gram



Shooting Cases-1

Ultra-Wide Spectrum Forensic Camera With High Sensitivity 1
Search in the five meter

Ultra-Wide Spectrum Forensic Camera With High Sensitivity 2
Shooting of the fingerprint

Ultra-Wide Spectrum Forensic Camera With High Sensitivity 3
Glass surface shoot


Shooting Cases-2

Ultra-Wide Spectrum Forensic Camera With High Sensitivity 4
Color photo fingerprint background removal

Ultra-Wide Spectrum Forensic Camera With High Sensitivity 5
Black cotton sneak search
