Lightweight Eod Portable X Ray Inspection System 10%-90% Rh Storage Humidity

Lightweight Eod Portable X Ray Inspection System 10%-90% Rh Storage Humidity

Product Details:

Place of Origin: China
Brand Name: HEWEI
Certification: YES
Model Number: HWXRY-03

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD per set FOB Shenzhen
Packaging Details: Carton package, wooden package.
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: Lightweight Eod Portable X Ray Inspection System 10%-90% Rh Storage Humidity Pixel Pitch: 154 μm
Pixel Array: 2816X2304 Limiting Resolution: 3.3 Lp/mm
Communication Interface: GbitE Storage Temperature: -10℃-55℃
High Light:

lightweight portable x ray inspection system

,

eod portable x ray inspection system

,

eod portable x ray system

Product Description

10%-90% RH Storage humidity, Portable Xray Inspection System



Portable Xray Bagggage Inspection System



Description

This device is a light weightz, portable, battery powered x-ray scanning system designed in co-operation with first responders and EOD teams to meet the need of the field operative . It is light weight and comes with user friendly software that helps operators in understanding the functions and operations in a less time.



Applied Scene:

EOD/IED :Widespread use of explosives presents immense growing challenges and threats to civilians, law enforcement forces, military and police bomb squads and EOD teams worldwide. The key objective of Bomb Disposal Operators is to accomplish their task as safely as possible. For that reason, EOD equipment, and specifically portable x-ray scanner systems play a crucial role in meeting this objective -providing real time, high quality images of suspect objects, while ensuring the safety of all parties involved.



Counter Surveillance

The portable X-ray scanner system plays a crucial role in inspecting everyday objects - such as electronic devices, furniture, walls (concrete, drywall) and even inspecting an entire hotel room. When guarding a public figure, or an embassy, these items as well as innocent looking gifts or mobile phones must be inspected for the slightest alteration in their electronic components which may imply it is being used as a listening device.



Border Control



The portable X-ray scanner systems are perfect for contraband – drugs or weapons, and IED detection by examination of suspected items across borders and perimeters. It allows the operator to carry the complete system in his car or in a backpack when needed. The inspection of suspected items is quick and simple and provides the highest image quality for on the spot decisions.



Customs

In customs, check point officials must perform a quick, non-intrusive and non-destructive inspection of suspected vehicles and packages with whom they come across on a daily basis.The portable X-ray scanner systems offer an excellent inspection solution for check points that do not have large cargo or vehicle inspection systems or require a complementary solution.It is ideal for contraband detection such as ammunition, weapons, drugs, jewelry and alcohol.

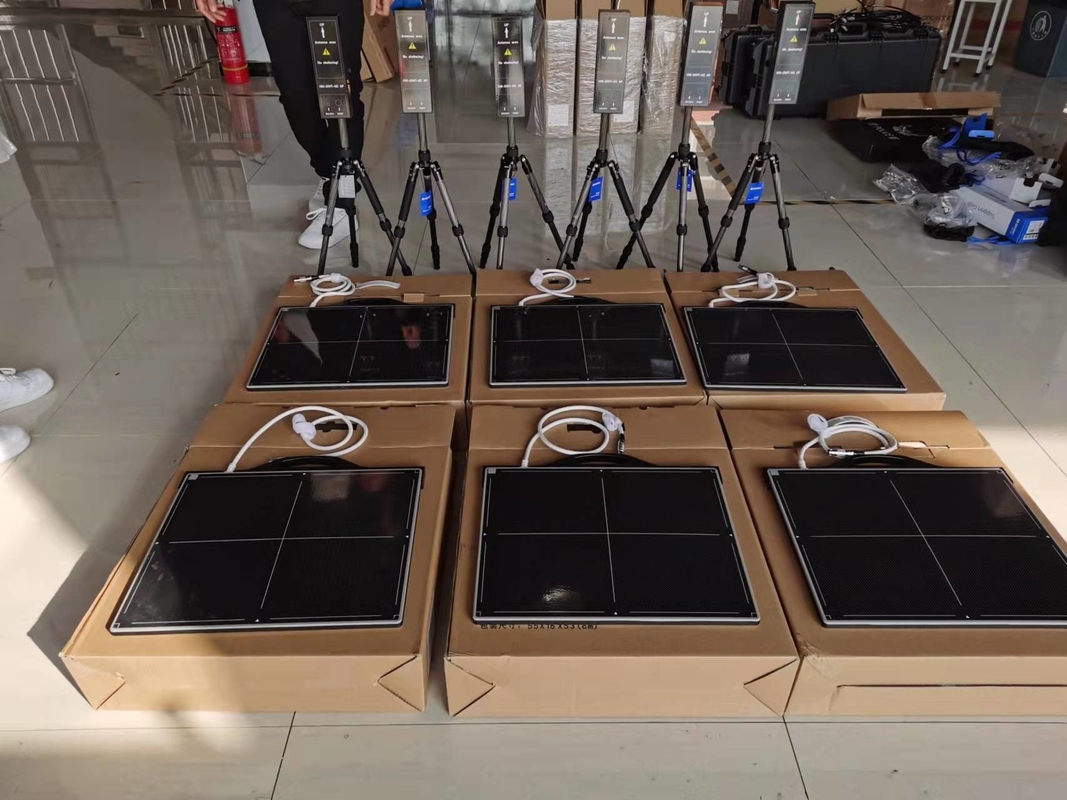

Lightweight Eod Portable X Ray Inspection System 10%-90% Rh Storage Humidity 0



Features:

  • Wide application range,Can be assemblied rapidly on-site.
  • Imaging plate using amorphous silicon technology,image is very clear.
  • Can operate with remote control in the rear.
  • Powerful image enhancement and Analysis tools.
  • Intuitive interface,Image splicing infinite,simplicity of operation.
  • User-friendly software.
  • Can log in,real-name use system,

Convenient for later verification.



Specification:

A Technical Specification of the imaging plate
1 Sensor type CsI Direct Deposit
2 Imaging area 433.7 x 354.8 mm2
3 Pixel pitch 154 μm
  Pixel array 2816X2304
4 Gray scale 16 bits
5 Limiting Resolution 3.3 lp/mm
6 Dynamic Range >80dB
7 Communication Interface GbitE
8 Image Acquisition Time 5s
9



Exposure Control

F²AED
Manual
  External Triggner
10 Operating environment Natural cooling
11 Storage temperature -10℃-55℃
12 Storage humidity 10%-90% RH
13 Size 460x384x15mm3
14 Weight 3kg
15 Outer cover Carbon fiber plate high-strength aluminum alloy
16 Power dissipation <8W(standby mode) / 22W(motion)
17 Power supply 100-250V AC
18 Frequency 50/60Hz
19



Wireless communication

Wi-Fi , no less than 70m

(5G Wi-Fi(802.11ac), 5745-5825MHZ)

Technical Specification-x-ray Generator
1 Operating Mode Pulse, it launches 4000 pulses each time when charged fully
2 Best Detecting Distance 0.7m
3 Voltage 150kV
4 Penetration 30mm steel
5 Weight 5.5 Kg
Technical Specification – Imaging Station (PC)
1 Type Laptop computer
2 Processor Intel Core i-3, Dual Core Display
3 Display 14” Full High Definition LED Display
4 Memory 2GB
5 Hard Drive 250GB
6 Optical Drive DVD +/-RW Media Bay Drive
7 Operating system English MS Windows
8



Software

Adjustable X-Ray source parameters (kV, mA & time) Standard, inverted and false color images Rotate, Histogram, Pan, Zoom, Deep FocusTM



The system comprises







  •
Image Panel 1
  •
X-ray Generator 1
  •
Laptop 1
  •

Module Box

(For Power Supply and Communication System)

1
  •
Ethernet Cable 1
  •
X-ray Wire Controller with cable(20m) 1
  •
X-ray Wireless Controller 1
  •
Image Panel Charger 1
  •
X-ray Generator Charger 1
  •
Laptop Adapter 1
  •
Storage Box 1
  •
Manual 1
  •
CD 1
