EOD 154um Portable X Ray Baggage Scanner Assemblied Rapidly On Site
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HWXRY-03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD per set FOB Shenzhen |
| Packaging Details: | Carton package, Wooden package |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Name: | Portable Xray Baggage Scanner | Operating Environment: | Natural Cooling |
|---|---|---|---|
| Sensor Type: | CsI Direct Deposit | Pixel Pitch: | 154μm |
| Dynamic Range: | ＞80dB | Image Acquisition Time: | 5s |
| High Light: | eod portable x ray baggage scanner,154um portable x ray baggage scanner,portable x ray inspection system eod |
||
Product Description
Can be assemblied rapidly on-site. Portable Xray Baggage Scanner
Portable Xray Baggage Scanner
Description
This device is a light weightz, portable, battery powered x-ray scanning system designed in co-operation with first responders and EOD teams to meet the need of the field operative . It is light weight and comes with user friendly software that helps operators in understanding the functions and operations in a less time.
Applied Scene:
EOD/IED :Widespread use of explosives presents immense growing challenges and threats to civilians, law enforcement forces, military and police bomb squads and EOD teams worldwide. The key objective of Bomb Disposal Operators is to accomplish their task as safely as possible. For that reason, EOD equipment, and specifically portable x-ray scanner systems play a crucial role in meeting this objective -providing real time, high quality images of suspect objects, while ensuring the safety of all parties involved.
Counter Surveillance
The portable X-ray scanner system plays a crucial role in inspecting everyday objects - such as electronic devices, furniture, walls (concrete, drywall) and even inspecting an entire hotel room. When guarding a public figure, or an embassy, these items as well as innocent looking gifts or mobile phones must be inspected for the slightest alteration in their electronic components which may imply it is being used as a listening device.
Border Control
The portable X-ray scanner systems are perfect for contraband – drugs or weapons, and IED detection by examination of suspected items across borders and perimeters. It allows the operator to carry the complete system in his car or in a backpack when needed. The inspection of suspected items is quick and simple and provides the highest image quality for on the spot decisions.
Features:
- Wide application range,Can be assemblied rapidly on-site.
- Imaging plate using amorphous silicon technology,image is very clear.
- Can operate with remote control in the rear.
- Powerful image enhancement and Analysis tools.
- Intuitive interface,Image splicing infinite,simplicity of operation.
- User-friendly software.
- Can log in,real-name use system,
Convenient for later verification.
Specification:
| A | Technical Specification of the imaging plate | |||
| 1 | Sensor type | CsI Direct Deposit | ||
| 2 | Imaging area | 433.7 x 354.8 mm2 | ||
| 3 | Pixel pitch | 154 μm | ||
| Pixel array | 2816X2304 | |||
| 4 | Gray scale | 16 bits | ||
| 5 | Limiting Resolution | 3.3 lp/mm | ||
| 6 | Dynamic Range | ＞80dB | ||
| 7 | Communication Interface | GbitE | ||
| 8 | Image Acquisition Time | 5s | ||
| 9 |
Exposure Control |
F²AED | ||
| Manual | ||||
| External Triggner | ||||
| 10 | Operating environment | Natural cooling | ||
| 11 | Storage temperature | -10℃-55℃ | ||
| 12 | Storage humidity | 10%-90% RH | ||
| 13 | Size | 460x384x15mm3 | ||
| 14 | Weight | 3kg | ||
| 15 | Outer cover | Carbon fiber plate high-strength aluminum alloy | ||
| 16 | Power dissipation | <8W(standby mode) / 22W(motion) | ||
| 17 | Power supply | 100-250V AC | ||
| 18 | Frequency | 50/60Hz | ||
| 19 |
Wireless communication |
Wi-Fi , no less than 70m (5G Wi-Fi(802.11ac), 5745-5825MHZ) |
||
| Technical Specification-x-ray Generator | ||||
| 1 | Operating Mode | Pulse, it launches 4000 pulses each time when charged fully | ||
| 2 | Best Detecting Distance | 0.7m | ||
| 3 | Voltage | 150kV | ||
| 4 | Penetration | 30mm steel | ||
| 5 | Weight | 5.5 Kg | ||
| Technical Specification – Imaging Station (PC) | ||||
| 1 | Type | Laptop computer | ||
| 2 | Processor | Intel Core i-3, Dual Core Display | ||
| 3 | Display | 14” Full High Definition LED Display | ||
| 4 | Memory | 2GB | ||
| 5 | Hard Drive | 250GB | ||
| 6 | Optical Drive | DVD +/-RW Media Bay Drive | ||
| 7 | Operating system | English MS Windows | ||
| 8 |
Software |
Adjustable X-Ray source parameters (kV, mA & time) Standard, inverted and false color images Rotate, Histogram, Pan, Zoom, Deep FocusTM | ||

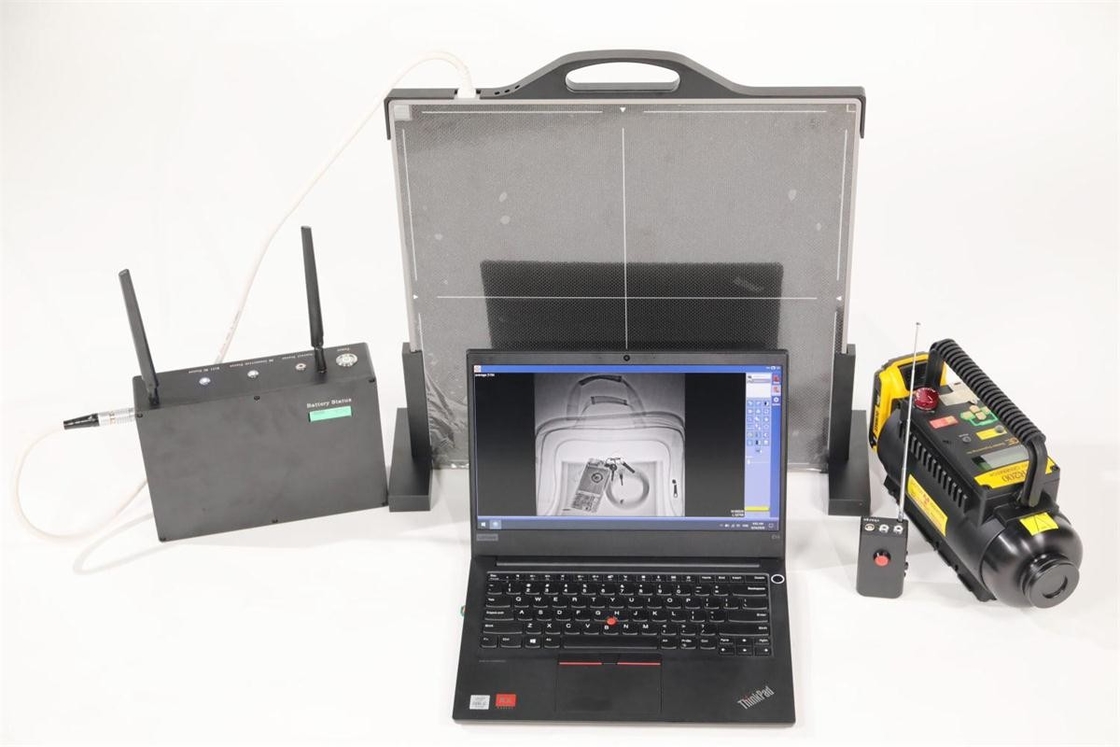

The system comprises
|
|
Image Panel | 1 | |
|
|
X-ray Generator | 1 | |
|
|
Laptop | 1 | |
|
|
Module Box (For Power Supply and Communication System) |
1 | |
|
|
Ethernet Cable | 1 | |
|
|
X-ray Wire Controller with cable(20m) | 1 | |
|
|
X-ray Wireless Controller | 1 | |
|
|
Image Panel Charger | 1 | |
|
|
X-ray Generator Charger | 1 | |
|
|
Laptop Adapter | 1 | |
|
|
Storage Box | 1 | |
|
|
Manual | 1 | |
|
|
CD | 1 |
