Dual Mode Ims Handheld Explosive Drugs Detector
Product Details:
Place of Origin: | China |
Brand Name: | HEWEI |
Certification: | YES |
Model Number: | HW-IMS-311 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD per set FOB Shenzhen |
Packaging Details: | Carton package, wooden package |
Delivery Time: | 10 working days |
Payment Terms: | T/T |
Supply Ability: | 100 sets per month |
Detail Information |
|||
Name: | Handheld Explosive & Drugs Detector | Analysis Time: | ≤8s |
---|---|---|---|
Sampling Method: | Particle Collection Via Wiping | Detection Sensitivity: | Nanogram Level (10-9-10-6gram) |
False Alarm Rate: | ≤ 1% | Data Storage: | 32GB, Support Backup Through USB Or Ethernet |
High Light: | dual mode drugs detector,ims drugs detector,ims hand held bomb detector |
Product Description
Dual Mode IMS Handheld Explosive & Drugs detector
Handheld Explosive & Drugs detector
Description
The device is based on the principle of ion mobility spectrum (IMS), using a new non-radioactive ionization source, which can detect and analyze trace explosive and drugs particles, and the detection sensitivity reaches the nanogram level. The special swab is swabbed and sampled on the surface of the suspicious object. After the swab is inserted into the detector, the detector will immediately report the specific composition and type of explosives and drugs.
The product is portable and easy to operate, especially suitable for flexible detection on site. It is widely used for explosive and drugs inspection in civil aviation, rail transit, customs, border defense and crowd gathering places, or as a tool for material evidence inspection by national law enforcement agencies.
Performance Advantage
●High safety, using non - radioactive ionization source
●Non-radioactive IMS technology, high sensitivity and low false alarm
●High detection efficiency, continuous detection, automatic calibration, sound-light alarm, automatic cleaning, self-diagnosis, without extra manual operation
●Remote diagnose and User friendly
●New Android system makes operation much easier and efficient
●Simple and beautiful appearance design, light weight, easy to carry
●Good human-computer interaction design, with 7-inch TFT LCD touch screen
●Multi-data interface and supporting software, storage of 500,000 raw data
●Upgradable library
Technical Specs
Technology | IMS (Ion mobility spectroscopy technology) |
Analysis time | ≤8s |
Ion Source | Non-radioactive ionization source |
Detection mode | Dual mode (explosive mode and drug mode) |
Cold Start-up time | <20min |
Sampling method | Particle collection via wiping |
Detection Sensitivity | Nanogram level (10-9-10-6gram) |
Substances detected | TNT,RDX,BP,PETN,NG,AN,HMTD,TETRYL,TATP, etc. |
Cocaine,Heroin,THC,MA,Ketamine,MDMA, etc. | |
False alarm rate | ≤ 1% |
Power Adapter | AC 100-240V, 50/60Hz, 240W |
Display Screen | 7inch LCD touch screen |
Com Port | USB/LAN/HDMI |
Data Storage | 32GB, support backup through USB or Ethernet |
Battery Working Time | More than 3hours |
Alarming method | Visual and Audible |
Dimensions | 412mm×158mm×170mm |
Weight | 4.8kg including battery |
Storage Temperature | - 40 ℃ ~ 60 ℃ |
Working Temperature | - 10 ℃ ~ 55 ℃ |
Work Humidity | <93% (non-condensing) |
Working Air Pressure | 60 Kpa~160 Kpa |

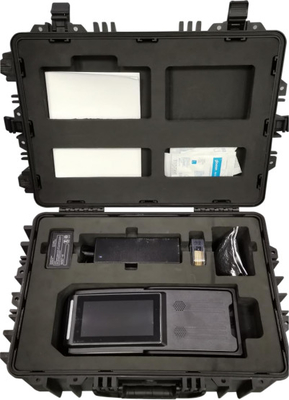

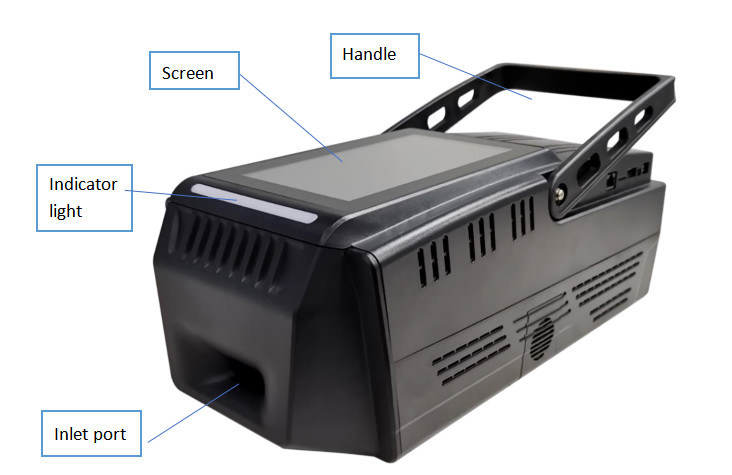

View of the device
