EOD Portable X Ray Baggage Scanner 50mm Aluminium Plate Penetration

EOD Portable X Ray Baggage Scanner 50mm Aluminium Plate Penetration

Product Details:

Place of Origin: China
Brand Name: HEWEI
Certification: YES
Model Number: HW-XRY03

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD per set FOB
Packaging Details: wooden package
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: Portable X-ray Inspection System Hard Drive: No Less Than 500GB
Operating System: English MS Windows 10 Operating Mode: Pulse, It Launches 4000 Pulses Each Time When Charged Fully
Best Detecting Distance: 0.7m Penetration: 50mm Aluminium Plate
Detector Area: 433mm X 354mm (Standard) Detector Thickness: 15mm
High Light:

eod portable x ray baggage scanner

,

lightweight portable x ray baggage scanner

,

50mm plate penetration portable baggage scanner

Product Description

50mm Aluminium Plate Penetration Portable X-ray Inspection system

Portable X-ray Inspection system



Description:

This device is a light weight, portable, battery powered x-ray scanning system designed in co-operation with the first responder and EOD teams to meet the need of the field operative. It is light weight and comes with user friendly software that helps operators in understanding the functions and operations in a less time.

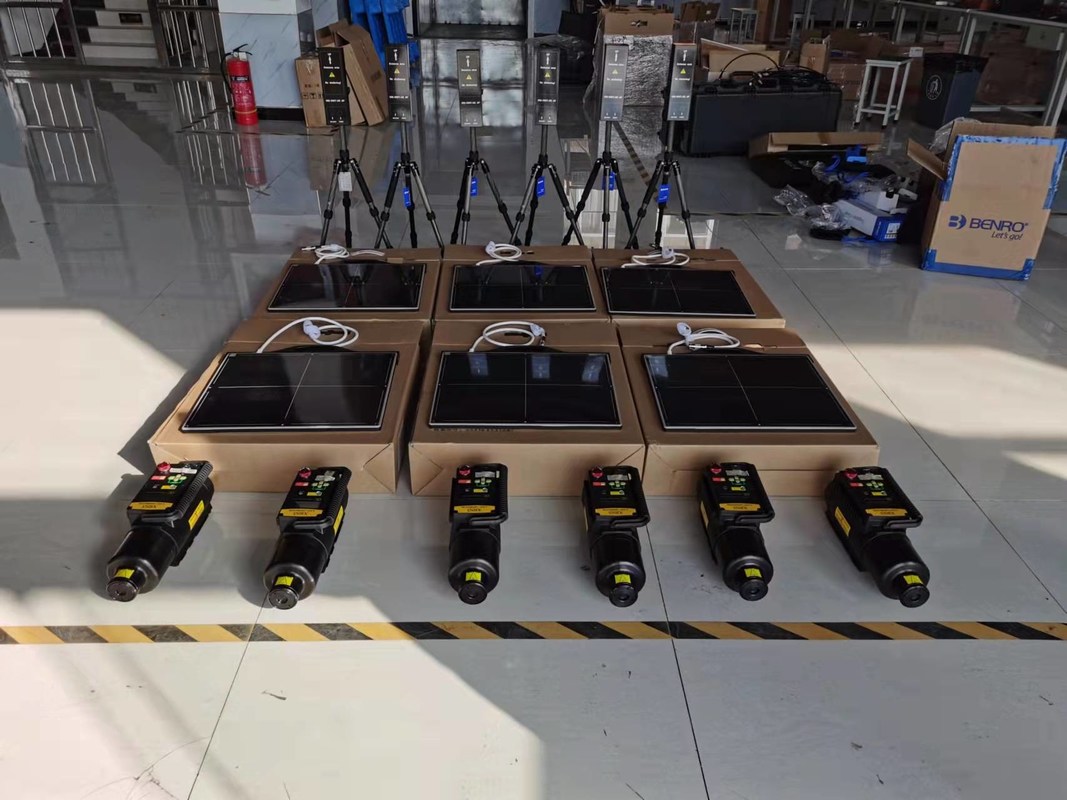

EOD Portable X Ray Baggage Scanner 50mm Aluminium Plate Penetration 0



Applied Scene:

EOD/IED:



Widespread use of explosives presents immense growing challenges and threats to civilians, law enforcement forces, military and police bomb squads and EOD teams worldwide. The key objective of Bomb Disposal Operators is to accomplish their task as safely as possible. For that reason, EOD equipment, and specifically portable x-ray scanner systems play a crucial role in meeting this objective -providing real time, high quality images of suspect objects, while ensuring the safety of all parties involved.



Counter Surveillance

The portable X-ray scanner system plays a crucial role in inspecting everyday objects - such as electronic devices, furniture, walls (concrete, drywall) and even inspecting an entire hotel room. When guarding a public figure, or an embassy, these items as well as innocent looking gifts or mobile phones must be inspected for the slightest alteration in their electronic components which may imply it is being used as a listening device.



Border Control

The portable X-ray scanner systems are perfect for contraband – drugs or weapons, and IED detection by examination of suspected items across borders and perimeters. It allows the operator to carry the complete system in his car or in a backpack when needed. The inspection of suspected items is quick and simple and provides the highest image quality for on the spot decisions.



Customs

In customs, check point officials must perform a quick, non-intrusive and non-destructive inspection of suspected vehicles and packages with whom they come across on a daily basis.The portable X-ray scanner systems offer an excellent inspection solution for check points that do not have large cargo or vehicle inspection systems or require a complementary solution.It is ideal for contraband detection such as ammunition, weapons, drugs, jewelry and alcohol.



Features:



Wide application range: Can be assembled

rapidly on-site.

Imaging plate using amorphous silicon technology, image is very clear.

Can operate with remote control in the rear.

Powerful image enhancement and Analysis tools.Intuitive interface,Image splicing infinite,

simplicity of operation.

User-friendly software.



Specification:

A Technical Specification of the imaging plate
1 Detector Type Amorphous Silicon with TFT
2 Detector Area 433mm x 354mm (Standard)
433mm x 433mm (Optional)
3 Detector Thickness 15mm
4 Pixel pitch 154 μm
5 Pixel array 2816X2304
6 Dynamic Range 16 bits
7 Limiting Resolution 3.3 lp/mm
8 Image Acquisition Time 4-5s
9 Weight 6.4 kg with battery
10 Power supply 220V AC/50Hz
11 Communication Wired: 50 meters fiber on a roller, TCP/IP Ethernet
Wireless: 5G Wi-Fi , no less than 70m
12 Operating Temperature -10℃+55℃
13 Humidity 0% to 95% non-condensing
Technical Specification-x-ray Generator
1 Operating Mode Pulse, it launches 4000 pulses each time when charged fully
2 Best Detecting Distance 0.7m
3 Working hours More than 5 hours
Battery Rechargeable Li Ion battery
1 spare battery
4 Voltage 150kV, Pulsed (safety to operator)
5 Penetration 50mm Aluminium Plate
6 Weight 5 Kg with battery
7 Power supply 220V AC/50Hz
8 Safety Key Switch, Audible & Visible alarm signs
Technical Specification – Imaging Station (PC)
1 Type Laptop computer
2 Processor The Intel Core i5 processor
3 Display 13 or 14” Full High Definition LED Display
4 Memory 8GB
5 Hard Drive no less than 500GB
6 Operating system English MS Windows 10
7 Software

Automatic Optimization, Invert, Revert, Pseudo color image, Rotate, Flip Horizontal, Flip Vertical, Zoom, Deep Focus, Polygon

On screen measurement, Merge, Save, 3D image





In 2008, Beijing Hewei Yongtai Technology Co., LTD was established in Beijing.Focus on the development and operation of special safety equipment, mainly serve the public security law, armed police, military, customs and other national security departments.
In 2010, Jiangsu Hewei Police Equipment Manufacturing Co., LTD was established in Guannan.Covering an area of 9000 square meters of workshop and office building, it aims to build a first-class special safety equipment research and development base in China.
In 2015, a military-police Reserch and development center was set up in Shenzhen.Focus on the development of special safety equipment, has developed more than 200 kinds of professional safety equipment.


Jiangsu Factory



EOD Portable X Ray Baggage Scanner 50mm Aluminium Plate Penetration 1



EOD Portable X Ray Baggage Scanner 50mm Aluminium Plate Penetration 2



Shenzhen Research Centre



EOD Portable X Ray Baggage Scanner 50mm Aluminium Plate Penetration 3



Overseas Exhibitions



EOD Portable X Ray Baggage Scanner 50mm Aluminium Plate Penetration 4



EOD Portable X Ray Baggage Scanner 50mm Aluminium Plate Penetration 5



Certificates



EOD Portable X Ray Baggage Scanner 50mm Aluminium Plate Penetration 6

EOD Portable X Ray Baggage Scanner 50mm Aluminium Plate Penetration 7





Staff Photo

EOD Portable X Ray Baggage Scanner 50mm Aluminium Plate Penetration 8
