Dangerous Liquid 5s Drugs Detector Inspector For Detect Harmful Liquid
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Delivery Time:||15 days|
|Inspection Object:||Flammable Liquid In Sealed Container||Container Material For Inspection:||Plastic /Glass/ Metal/ Pottery/ Papery With No Aluminum Foil|
|Range Volume For Inspection:||Plastic/Glass, 100-5000ml; Metal, 100-2000ml||Detection Time:||Plastic (Container), About 1s; Metal, About 5s|
|Liquid Volume For Inspection:||≧100ml||Operating Environmental Temperature:||0-40°C|
|Temperature Of Liquid For Inspection:||0-40°C||Relative Humidity:||0-99% Non-condense|
|Weight:||8kg||Size:||L 470mm X W 410mm X H 185mm|
|Alert Type:||Sound/ Signal Light/ LCD Display||Power Supply:||AC100-240V(50/60Hz)|
5s drugs detector,
dangerous drugs detector,
dangerous drugs inspector

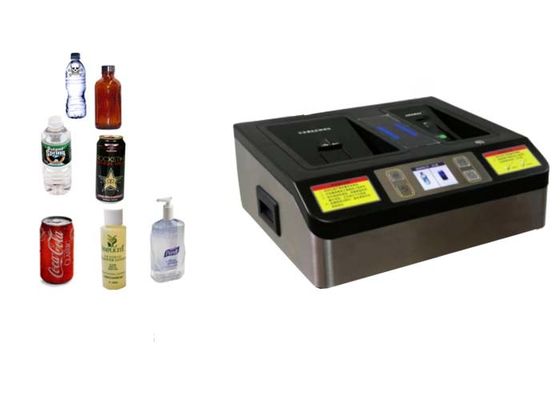

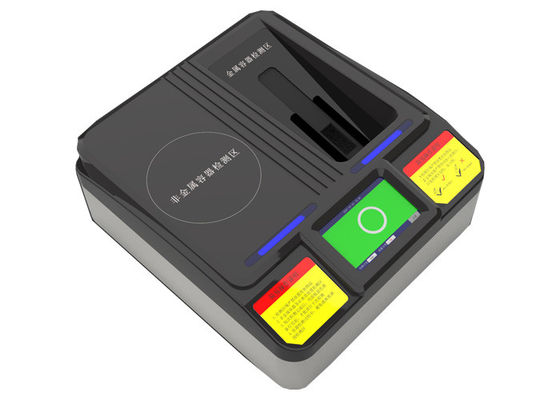

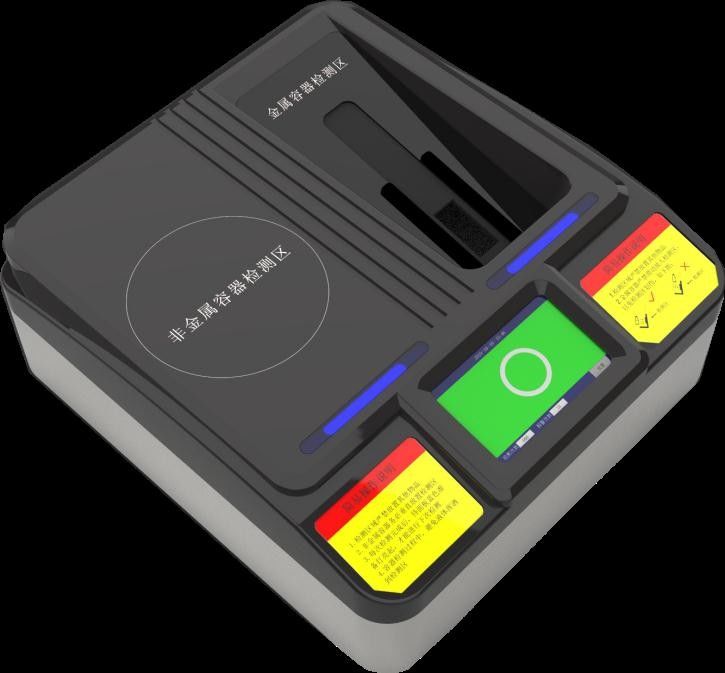

HW-LIS03 dangerous liquid inspector is a security inspection device used to inspect the safety of liquids contained in sealed containers. This equipment can quickly determine whether the liquid being inspected belongs to flammable and explosive dangerous goods without opening the container.
HW-LIS03 dangerous liquid inspection instrument does not require complicated operations, and can test the safety of the target liquid only by scanning in an instant. Its simple and fast characteristics are especially suitable for security inspections in crowded or important places, such as airports, stations, government agencies, and public gatherings.
Applicable liquid packaging materials: able to detect different materials such as iron, aluminum, plastic, glass and ceramics for packaging liquids
Detectable dangerous liquid categories: flammable, explosive, corrosive dangerous liquid
Detectable volume size: plastic bottle, glass bottle, ceramic bottle 50mm≤diameter≤170mm;
Metal cans (iron and aluminum cans) 50mm≤diameter≤80mm;
Metal tank/tank liquid volume ≥100ml, non-metal container ≥100ml
Detectable effective distance: liquid is 30mm from the bottom of metal container, 30mm from non-metal container

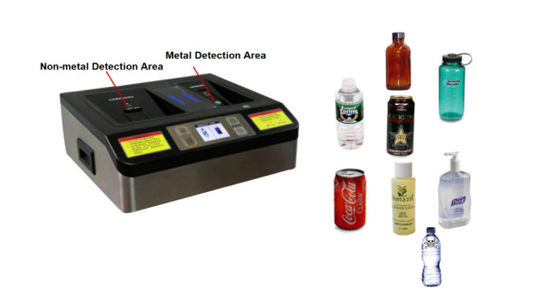

Non-metal bottle and metal tank liquid have simultaneous detection function
Dangerous liquid display: the indicator light is red, accompanied by a long buzzer
Safe liquid display: the indicator light is green, accompanied by a short-beep alarm
Boot time: <5s, no need to warm up
Self-checking function: self-checking function at boot
Automatic counting function: can automatically calculate the amount of liquid detected on the day
Identity verification function: multi-user identity verification function.
Man-machine interface inspection: The man-machine interface of the equipment provides a Chinese and English color display interface, and comes with a light source. Make the user can adjust or view the status of the equipment through the touch screen according to the working environment.
Detection method: detection method at the bottom of the bottle.
Detection principle: adopt ultra-broadband review pulse reflection method and thermal conductivity measurement method detection technology
Detectable liquid category: the instrument can detect gasoline, diesel, kerosene, edible oil, methanol, ethanol, propylene
Ketones, ether, benzene, toluene, glycerol, chloroform, nitrotoluene, n-propanol, iso Propanol, xylene, nitrobenzene, n-heptane, carbon disulfide, carbon tetrachloride, formic acid, ethyl . Flammable or corrosive dangerous liquids in sealed containers such as acid, phosphoric acid, hydrochloric acid, sulfuric acid, nitric acid, etc.
