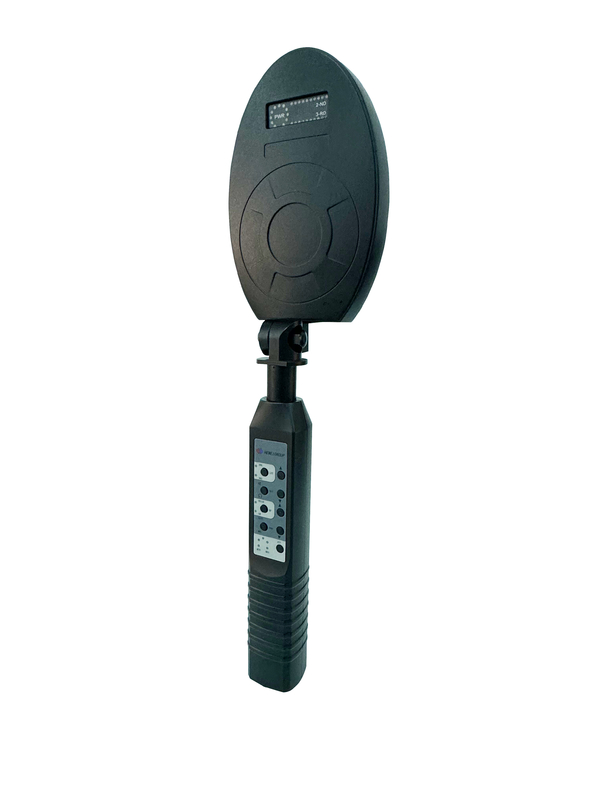

Nonlinear normal power 0.15 m  junction Detector 3.7V 7800mah

Nonlinear normal power 0.15 m junction Detector 3.7V 7800mah

Product Details:

Place of Origin: China
Brand Name: HEWEI
Certification: YES
Model Number: HW-24

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD per set FOB Shenzhen
Packaging Details: Carton package
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 300 sets per month
Get Best Price Contact Now

Detail Information

Name: Nonlinear Normal Power 0.15 M Junction Detector 3.7V 7800mah Working Time: Continuous Wave Mode: 1.3 Hours
Volume: Can Be Adjusted Charger Parameters: Output DC 4.2V 3A

Product Description

Nonlinear normal power 0.15 m junction Detector 3.7V 7800mah





Introduction



The non-linear Junction Detector HW-24 analyzes the 2nd and 3rd harmonics reflected from the target to ensure the rapid and reliable identification of electronic components and corrosive semiconductors.Automatic adjustment of detection emission power.The non-linear junction detector can automatically adjust the optimal reception frequency to avoid interference from external noise, thus ensuring good results in complex geomagnetic environment.



Nonlinear normal power 0.15 m  junction Detector 3.7V 7800mah 0





Specification





Sensitivity Not less than -120dbm
Modulation mode: Pulse signal, continuous wave signal;
Output power Pulse mode:15W; Continuous wave mode : 4W;
Display panel Display 2nd and 3rd harmonics and sensitivity;
Volume Volume can be adjusted and can be connected to external headphones
Detection range Normal power: 0.15 m; maximum power: 0.4 m;
False alarm rate ≤5%
Signal frequency 2400 - 2483 MHz
Working time Pulse mode: 5 hours, Continuous wave mode: 1.3 hours;

Battery parameters



3.7V 7800mah;
Charger parameters Input AC100-240V, Output DC 4.2V 3A;
Host size Length 470mm unfolded, 285mm folded;Width of 128 mm;
Working environment humidity ≤90%;Temperature -5 ° C to 50 ° C
Weight less than 1000 g
