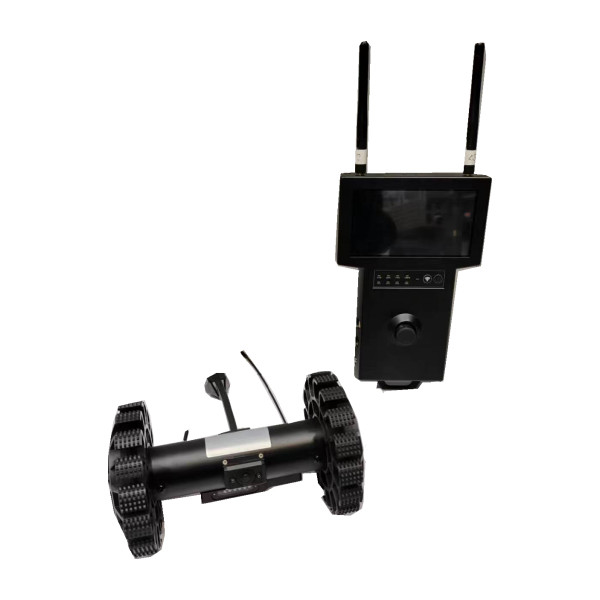

Thrown Small Detective Robot 0.6kg Equipped With Infrared Lighting
Product Details:
Place of Origin: | China |
Brand Name: | HEWEI |
Certification: | Yes |
Model Number: | HW-TDR-2 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD/Set FOB shenzhen |
Packaging Details: | Carton package |
Delivery Time: | 10 working days |
Payment Terms: | T/T |
Supply Ability: | 30 sets per month |
Detail Information |
|||
Frame Rate: | 30fps | Control Terminal Dimension: | 230×126mm (without Antenna) |
---|---|---|---|
Control Terminal Weight: | 0.55kg (with Battery) | Control Terminal Display Screen: | 5inch (Resolution: 1024x600) |
Control Terminal Working Time: | 180minutes | Control Terminal Memory Capacity: | 32G |
Protecting Rate: | IP66 | ||
High Light: | thrown small detective robot,infrared lighting detective robot,infrared lighting thrown detective robot |
Product Description
Built-in HD camera and sound collector Thrown Detective Robot
Introduction
The two-wheeled detective robot platform has the advantages of simple structure, convenient control, flexible mobility and strong cross-country ability. The built-in high-definition image sensor, pickup and auxiliary light can effectively collect environmental information, realize remote visual combat command and day and night reconnaissance operations, with high reliability. The robot control terminal is ergonomically designed, compact and convenient, with complete functions, which can effectively improve the working efficiency of the command personnel.
Features
1.With anti-drop design, can be directly thrown to the target area operation
2.Real-time transmission and storage of voice, data and images
3.Built - in HD camera and sound collector, can remote visual combat command
4.Equipped with infrared lighting, can be day and night reconnaissance operation
5.The control terminal interface is simple and intuitive
6.With video recording, photography functions
7.Built-in SD card, support video, image online playback and export function
Application Scenarios
It is suitable for public security, armed police and other departments, and can be used for anti-terrorism, anti-hijacking, covert detection, low-space detection, patrol, tunnel patrol and other operational tasks in the urban day and night environment.
Technical Specification
Robot | Weight | 0.6kg (battery included) |
Dimension |
Length: 200mm Height: 115mm (Wheel’s diameter) |
|
Antenna length |
433MHZ: 200mm 2.4GHZ: 96mm |
|
Moving speed | 0.6m/s | |
Maximum climbing angle | 25° | |
Maximum Throwing distance |
Vertical: 9m Horizontal: 30m |
|
Remote control distance |
Indoor: 50m Outdoor: 180m (Visual Distance) |
|
Working time | 110minutes | |
Standby time | 150minutes | |
Frame Rate | 30fps | |
Protecting Rate | IP66 | |
IR illumination distance | 7.8m | |
FOV | 120° | |
Audio | One-way, listening only (433M, 2.4G) | |
Control Terminal | Dimension | 230×126mm (without antenna) |
Weight | 0.55kg (with battery) | |
Display Screen | 5inch (Resolution: 1024x600) | |
Working time | 180minutes | |
Memory Capacity | 32G | |
Protecting Rate | IP66 |
