Accident Rescue Emergency Rescue Equipment Hydraulic Jack Set

China Accident Rescue Emergency Rescue Equipment Hydraulic Jack Set supplier

Large Image :  Accident Rescue Emergency Rescue Equipment Hydraulic Jack Set

Product Details:

Place of Origin: CHINA
Brand Name: HEWEI
Certification: CE,ROHS,ISO,etc

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD
Packaging Details: Carton
Delivery Time: 2 Weeks
Payment Terms: T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Rated Working Pressure: 720Bar Max. Opening Force: 10T
Closed Length: 109mm Opening Distance: 24mm
Max. Opening Height: 133mm Weight: 1.6kg

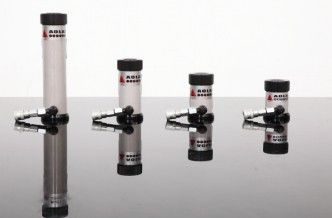

Hydraulic Jack Set



Product Description



Combination with four standard, by hydraulic hand pump, the hydraulic jack save victims stuck in danger through

lifting the heavy objects.



Application



Traffic accident rescue earthquake disaster relief, accident rescue etc.Powered by hydraulic hand pump, extends

 the piston stick to hold weight in a certain distance under the hydraulic pressure



Features



Handlers should find a suitable point to fix the jack in order to avoid the twice hurts during the working time.

While extending, double sets of jacks can protect the weight from slip. When using jacks tilt, axes is perpendicular

 to the supporting surface, prevent slide. Handle pump is the only power source to jack.



Technical Parameters



Item

Model A

Model B

Model C

Model D

Rated Working Pressure

720Bar

720Bar

720Bar

720Bar

Max. opening force

10T

10T

10T

10T

Closed Length

109mm

129mm

169mm

249mm

Opening Distance

24mm

44mm

84mm

164mm

Max. Opening Height

133mm

173mm

253mm

413mm

Weight

1.6kg

1.8kg

2.1kg

2.7kg
