433x433mm Detector Area I5 Portable X-Ray Inspection System 15mm Detector Thickness
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HWXRY-04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD per set FOB |
| Packaging Details: | carton package, wooden package |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Name: | Portable Xray Baggage Inspection Device | PC Processor: | The Intel Core I5 Processor |
|---|---|---|---|
| Detector Type: | Amorphous Silicon With TFT | Detector Thickness: | 15mm |
| Pixel Pitch: | 154 μm | Dynamic Range: | 16 Bits |
| High Light: | i5 portable x-ray inspection system,154um portable x-ray inspection system |
||
Product Description
433mm x 433mm (Optional)Detector Area, 15mm Detector Thickness,Portable Xray baggage inspection device
Portable Xray baggage inspection device
Description:

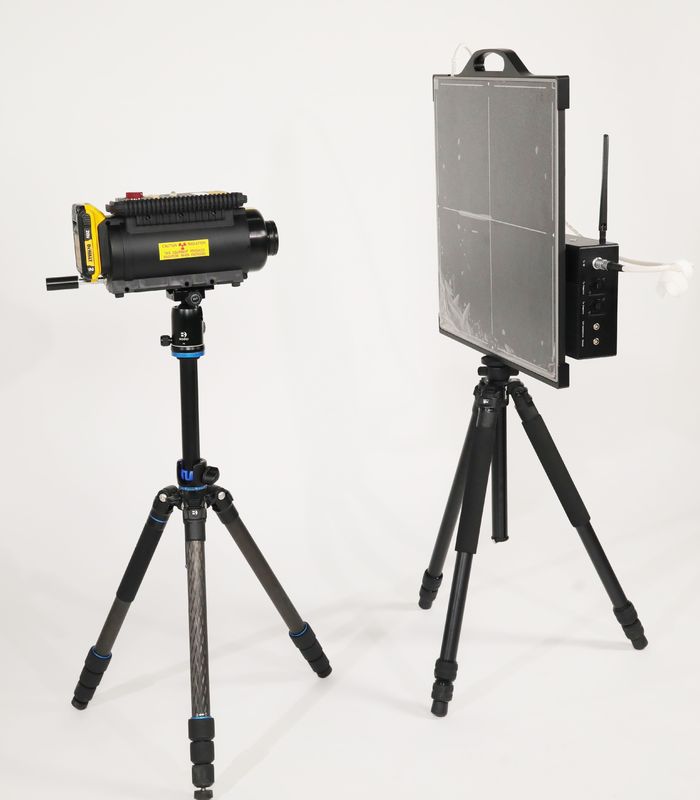

This device is a light weight, portable, battery powered x-ray scanning system designed in co-operation with the first responder and EOD teams to meet the need of the field operative. It is light weight and comes with user friendly software that helps operators in understanding the functions and operations in a less time.
Widespread use of explosives presents immense growing challenges and threats to civilians, law enforcement forces, military and police bomb squads and EOD teams worldwide. The key objective of Bomb Disposal Operators is to accomplish their task as safely as possible. For that reason, EOD equipment, and specifically portable x-ray scanner systems play a crucial role in meeting this objective -providing real time, high quality images of suspect objects, while ensuring the safety of all parties involved.
Specification:
| A | Technical Specification of the imaging plate | |
| 1 | Detector Type | Amorphous Silicon with TFT |
| 2 | Detector Area | 433mm x 354mm (Standard) |
| 433mm x 433mm (Optional) | ||
| 3 | Detector Thickness | 15mm |
| 4 | Pixel pitch | 154 μm |
| 5 | Pixel array | 2816X2304 |
| 6 | Dynamic Range | 16 bits |
| 7 | Limiting Resolution | 3.3 lp/mm |
| 8 | Image Acquisition Time | 4-5s |
| 9 | Weight | 6.4 kg with battery |
| 10 | Power supply | 220V AC/50Hz |
| 11 | Communication | Wired: 50 meters fiber on a roller, TCP/IP Ethernet |
| Wireless: 5G Wi-Fi , no less than 70m | ||
| 12 | Operating Temperature | -10℃+55℃ |
| 13 | Humidity | 0% to 95% non-condensing |
| Technical Specification-x-ray Generator | ||
| 1 | Operating Mode | Pulse, it launches 4000 pulses each time when charged fully |
| 2 | Best Detecting Distance | 0.7m |
| 3 | Working hours | More than 5 hours |
| Battery | Rechargeable Li Ion battery | |
| 1 spare battery | ||
| 4 | Voltage | 150kV, Pulsed (safety to operator) |
| 5 | Penetration | 50mm Aluminium Plate |
| 6 | Weight | 5 Kg with battery |
| 7 | Power supply | 220V AC/50Hz |
| 8 | Safety | Key Switch, Audible & Visible alarm signs |
| Technical Specification – Imaging Station (PC) | ||
| 1 | Type | Laptop computer |
| 2 | Processor | The Intel Core i5 processor |
| 3 | Display | 13 or 14” Full High Definition LED Display |
| 4 | Memory | 8GB |
| 5 | Hard Drive | no less than 500GB |
| 6 | Operating system | English MS Windows 10 |
| 7 | Software |
Automatic Optimization, Invert, Revert, Pseudo color image, Rotate, Flip Horizontal, Flip Vertical, Zoom, Deep Focus, Polygon On screen measurement, Merge, Save, 3D image |
