Product Details:

Place of Origin: China
Brand Name: HEWEI
Certification: YES
Model Number: HW-38B

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD per set FOB Shenzhen
Packaging Details: carton package, wooden package
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 100 sets per month
Get Best Price Contact Now

Detail Information

Name: Explosives Disrupter Diameter: 38mm
Length: 560mm Shooting Energy: ≥0.8mm Thick Iron Plates
Weight: 10.8 Kg Detection Current: <50mA
High Light:

38mm diameter explosive disruptor

,

strong stability explosive disruptor

,

army explosive disruptor

Product Description

Strong Stability, 38mm Diameter Explosives Disrupter

Explosives Disrupter



Description

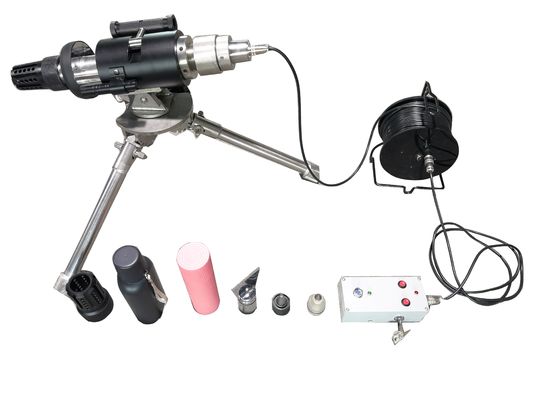

The explosives disrupter also named water jet disrupter is composed of barrel, buffer

laser sight, nozzle, projectiles, tripod cables, etc. It is mainly used to disposal or destroy dangerous explosives and suspicious objects by police department armed police department, army and so on

strong stability 38mm diameter army explosive disruptor 0

Advantages:



  • Multiple Shock Absorption: Set multiple dampers to reduce the shooting recoil force by 60% when transmitted to the bracket
  • Strong Stability: The bracket is specially designed, enable explosive disrupter to adjust position and angle, along with support surface according to the shooting angle to achieve stable
  • Dedicated detonator with multiple safety protection
  • Equipped with laser dot sighting device



Technical Index and Components:

1. Launch Tube: Launch tube inner diameter is 38mm, with horizontal rotation, up and down swing, two free adjustment and a laser sight on the top, which makes the aiming and positioning operation convenient and easy to learn



2. Buffer Seat: Made of aluminum alloy, equipped with shock absorber to minimize the recoil



3. Tripod: Adopts the ratchet stopper principle and equipped with multi-gear positioning function to adjust the height of the disrupter

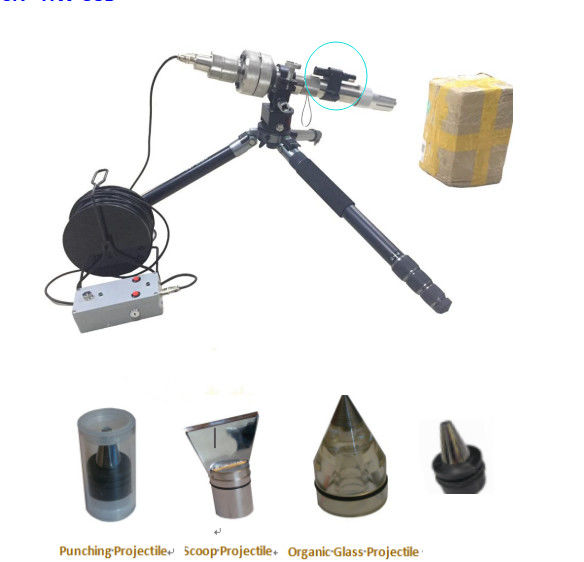

3. Attacking Projectiles:

Water Projectile, mainly used to disposal or destroy various explosives;

Scoop Projectile, mainly used to slash cylindrical objects;

Organic Glass Projectile, able to punch iron plates ≥0.8mm thick;

Cylindrical Steel Core Projectile, able to penetrate ≥1 mm thick iron plate, tubular bomb and door lock.



Technical Parameters:

Diameter: 38mm

Length: 560mm

Shooting Energy: ≥0.8mm thick iron plates

Weight: 10.8 kg

Detection Current:<50mA

Ignition Current: 1.0A

Ignition Voltage: 6-12V
