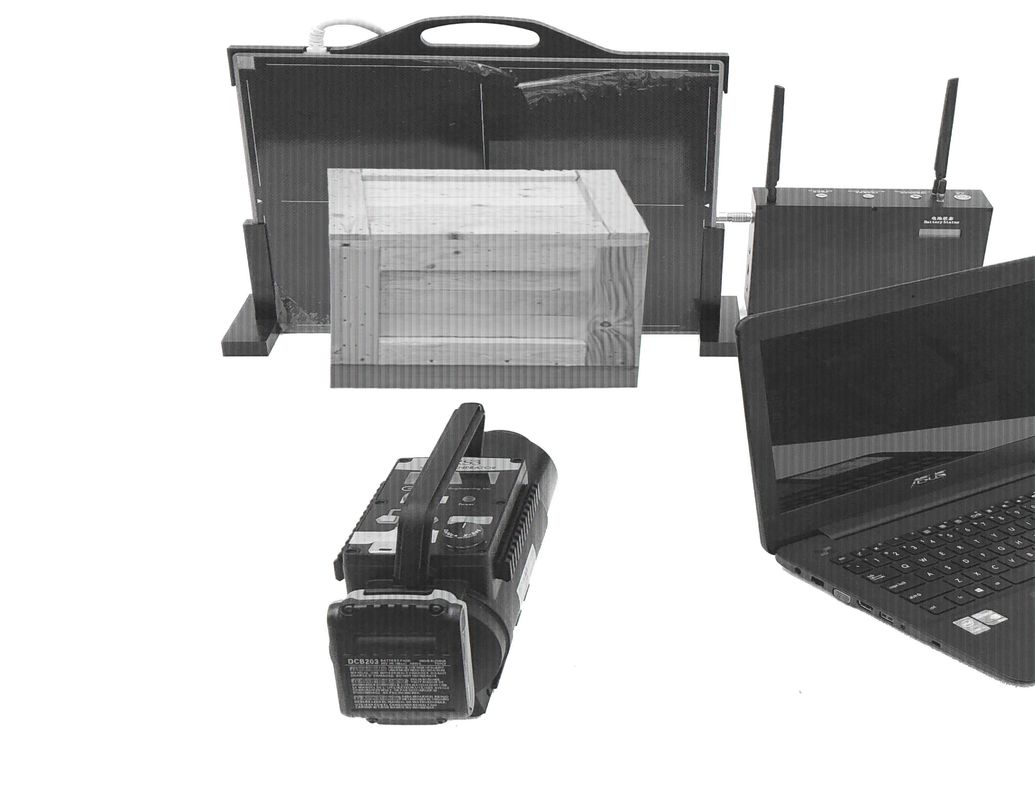

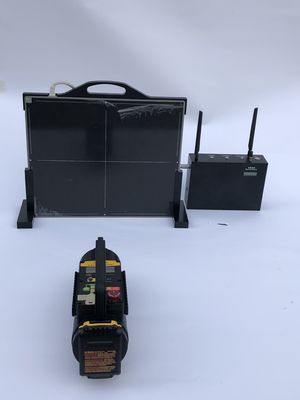

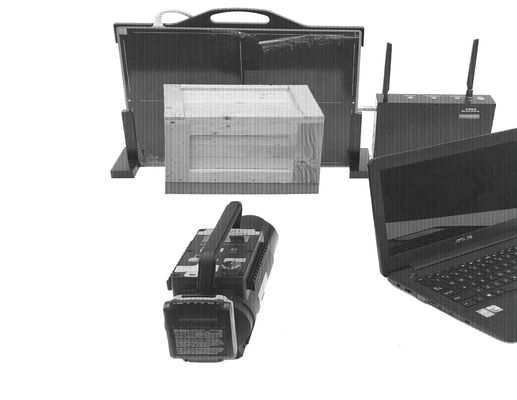

Amorphous Silicon Eod Portable X-Ray Inspection System With Tft Detector Type

Amorphous Silicon Eod Portable X-Ray Inspection System With Tft Detector Type
Amorphous Silicon Eod Portable X-Ray Inspection System With Tft Detector Type

Large Image :  Amorphous Silicon Eod Portable X-Ray Inspection System With Tft Detector Type

Product Details:
Place of Origin: China
Brand Name: HEWEI
Certification: YES
Model Number: HWXRY-03
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD per set FOB Shenzhen
Packaging Details: carton package, wooden package
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 20 sets per month
Detailed Product Description
Name: Portable Xray Scanner System Detector Thickness: 15mm
Pixel Pitch: 154 μm Limiting Resolution: 3.3 Lp/mm
Image Acquisition Time: 4-5s Weight: 6.4 Kg With Battery
High Light:

tft portable x-ray inspection system

,

eod portable x-ray inspection system

433mm x 354mm (Standard) Detector Area ,Amorphous Silicon with TFT Detector Type Portable xray inspection device



Portable xray inspection device



Description:

This device is a light weight, portable, battery powered x-ray scanning system designed in co-operation with the first responder and EOD teams to meet the need of the field operative. It is light weight and comes with user friendly software that helps operators in understanding the functions and operations in a less time.



Wide application range: Can be assembled

rapidly on-site.

Imaging plate using amorphous silicon technology, image is very clear.

Can operate with remote control in the rear.

Powerful image enhancement and Analysis tools.Intuitive interface,Image splicing infinite,

simplicity of operation.

User-friendly software.



The portable X-ray scanner system plays a crucial role in inspecting everyday objects - such as electronic devices, furniture, walls (concrete, drywall) and even inspecting an entire hotel room. When guarding a public figure, or an embassy, these items as well as innocent looking gifts or mobile phones must be inspected for the slightest alteration in their electronic components which may imply it is being used as a listening device.



Amorphous Silicon Eod Portable X-Ray Inspection System With Tft Detector Type 0

Specification:

A Technical Specification of the imaging plate
1 Detector Type Amorphous Silicon with TFT
2 Detector Area 433mm x 354mm (Standard)
433mm x 433mm (Optional)
3 Detector Thickness 15mm
4 Pixel pitch 154 μm
5 Pixel array 2816X2304
6 Dynamic Range 16 bits
7 Limiting Resolution 3.3 lp/mm
8 Image Acquisition Time 4-5s
9 Weight 6.4 kg with battery
10 Power supply 220V AC/50Hz
11 Communication Wired: 50 meters fiber on a roller, TCP/IP Ethernet
Wireless: 5G Wi-Fi , no less than 70m
12 Operating Temperature -10℃+55℃
13 Humidity 0% to 95% non-condensing
Technical Specification-x-ray Generator
1 Operating Mode Pulse, it launches 4000 pulses each time when charged fully
2 Best Detecting Distance 0.7m
3 Working hours More than 5 hours
Battery Rechargeable Li Ion battery
1 spare battery
4 Voltage 150kV, Pulsed (safety to operator)
5 Penetration 50mm Aluminium Plate
6 Weight 5 Kg with battery
7 Power supply 220V AC/50Hz
8 Safety Key Switch, Audible & Visible alarm signs
Technical Specification – Imaging Station (PC)
1 Type Laptop computer
2 Processor The Intel Core i5 processor
3 Display 13 or 14” Full High Definition LED Display
4 Memory 8GB
5 Hard Drive no less than 500GB
6 Operating system English MS Windows 10
7 Software

Automatic Optimization, Invert, Revert, Pseudo color image, Rotate, Flip Horizontal, Flip Vertical, Zoom, Deep Focus, Polygon

On screen measurement, Merge, Save, 3D image



Amorphous Silicon Eod Portable X-Ray Inspection System With Tft Detector Type 1



Amorphous Silicon Eod Portable X-Ray Inspection System With Tft Detector Type 2



Amorphous Silicon Eod Portable X-Ray Inspection System With Tft Detector Type 3



Amorphous Silicon Eod Portable X-Ray Inspection System With Tft Detector Type 4



Amorphous Silicon Eod Portable X-Ray Inspection System With Tft Detector Type 5

Amorphous Silicon Eod Portable X-Ray Inspection System With Tft Detector Type 6
