Lightweight Battery Powered 0.7m Portable X Ray Inspection System
Product Details:
Place of Origin: | China |
Brand Name: | HEWEI |
Certification: | YES |
Model Number: | HWXRY-03 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD 37000~40000 |
Packaging Details: | wooden package |
Delivery Time: | 45 working days |
Payment Terms: | T/T |
Supply Ability: | 30 sets per 45 days |
Detail Information |
|||
Name: | Portable, Battery Powered X-ray Scanning System | Detector Type: | Amorphous Silicon With TFT |
---|---|---|---|
Detector Area: | Detector Area | Limiting Resolution: | Limiting Resolution |
Operating System: | English MS Windows 10 | Best Detecting Distance: | 0.7m |
High Light: | portable x ray inspection system EOD,EOD portable x ray inspection system,0.7m portable x ray inspection system |
Product Description

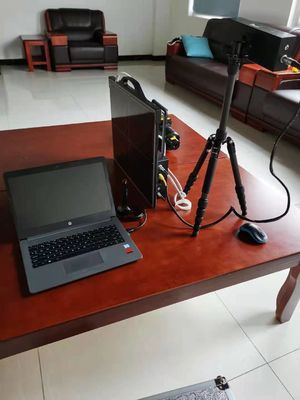

Light weight, portable, battery powered x-ray scanning system
Description:
This device is a light weight, portable, battery powered x-ray scanning system designed in co-operation with the first responder and EOD teams to meet the need of the field operative. It is light weight and comes with user friendly software that helps operators in understanding the functions and operations in a less time.
Specification:
A | Technical Specification of the imaging plate | |
1 | Detector Type | Amorphous Silicon with TFT |
2 | Detector Area | 433mm x 354mm (Standard) |
433mm x 433mm (Optional) | ||
3 | Detector Thickness | 15mm |
4 | Pixel pitch | 154 μm |
5 | Pixel array | 2816X2304 |
6 | Dynamic Range | 16 bits |
7 | Limiting Resolution | 3.3 lp/mm |
8 | Image Acquisition Time | 4-5s |
9 | Weight | 6.4 kg with battery |
10 | Power supply | 220V AC/50Hz |

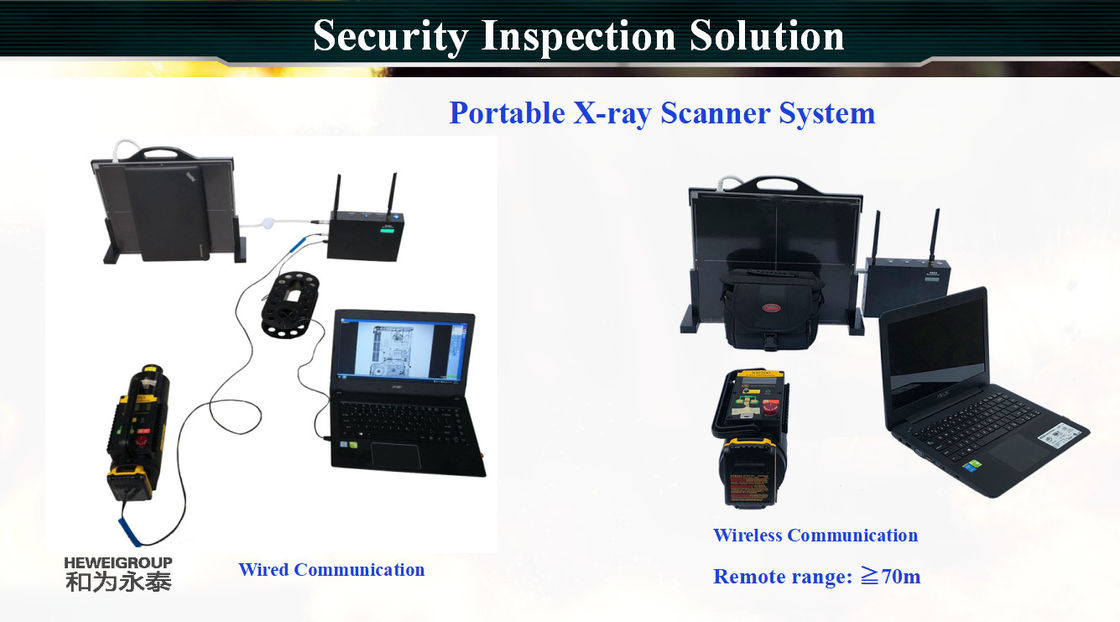

11 | Communication | Wired: 50 meters fiber on a roller, TCP/IP Ethernet |
Wireless: 5G Wi-Fi , no less than 70m | ||
12 | Operating Temperature | -10℃+55℃ |
13 | Humidity | 0% to 95% non-condensing |
Technical Specification-x-ray Generator | ||
1 | Operating Mode | Pulse, it launches 4000 pulses each time when charged fully |
2 | Best Detecting Distance | 0.7m |
3 | Working hours | More than 5 hours |
Battery | Rechargeable Li Ion battery | |
1 spare battery | ||
4 | Voltage | 150kV, Pulsed (safety to operator) |
5 | Penetration | 50mm Aluminium Plate |
6 | Weight | 5 Kg with battery |
7 | Power supply | 220V AC/50Hz |
8 | Safety | Key Switch, Audible & Visible alarm signs |
Technical Specification – Imaging Station (PC) | ||
1 | Type | Laptop computer |
2 | Processor | The Intel Core i5 processor |
3 | Display | 13 or 14” Full High Definition LED Display |
4 | Memory | 8GB |
5 | Hard Drive | no less than 500GB |
6 | Operating system | English MS Windows 10 |
7 | Software |
Automatic Optimization, Invert, Revert, Pseudo color image, Rotate, Flip Horizontal, Flip Vertical, Zoom, Deep Focus, Polygon On screen measurement, Merge, Save, 3D image |
