Rf Ied Eod 5.8g Wifi Signal Blocker Device In Black
Product Details:
| Place of Origin: | Made-in-China |
| Brand Name: | HEWEI |
| Certification: | Yes |
| Model Number: | HWBJ-IV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 5000-20000 |
| Packaging Details: | wooden case, carton case, 63*50*30cm |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Frequency Range, Power And Target: | 10-80MHz 130-230MHz 230-500MHZ 500-800MHz 800-1000MHz 1000-2000MHz 2000-2200MHz 2200-2500MHz 2500-3000MHz 3000-6000MHz(optional) | Operating Mode: | Switch The Machine On And Off At One Key |
|---|---|---|---|
| Transmitted Power: | 325W(include 5.8G) | Power Consumption: | MAX800W |
| Power Adaptability: | AC220V/DC24-26V | DC Incoming Current: | 20Amps&24VDC |
| Operation Time: | Unlimited (~ Hours).The Built-in DC24V30AH Power Battery Pack Can Support The Equipment To Work Continuously For 60 Minutes; | Built-in Battery: | DC24V&20AH Can Support Continuous Working For 60 Minutes |
| Built-in Charger: | 29.5V&2A Maximum Charging Time Is 5 Hours | Main Unit Weight(Contain Antenna): | 34.5kg |
| Main Unit Size: | 63*50*30cm, Antenna Length: 96cm | Reliability And Maintainability Requirements: | MTBF≥1000 Hours、MTTR≤1 Hour |
| Interference Style: | Frequency Band Block Interference, Sweep Frequency Interference | Working Way: | Sweep Frequency, Grooming Spectrum And Direct Sequence Spread Spectrum Are Combined |
| Interference Distance: | 20-100m(The Distance Is Related To The Base Station Distance And Whether There Is A Mobile Phone Amplifier) | ||
| High Light: | eod wifi signal blocker,ied rf signal blocker,5.8g wifi signal blocker |
||
Product Description

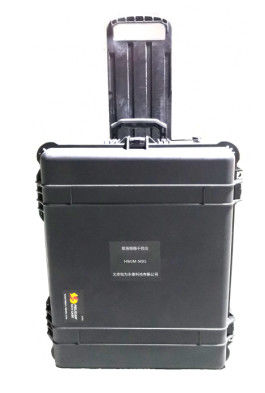

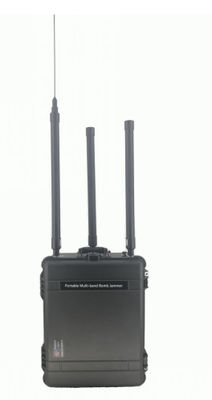

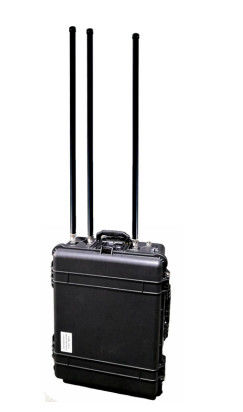

Portable Wide-Band Wireless Frequency Interferometer
Model:HWBJ-IV
Introduction
This product has small volume, light weight, which is convenient for the individual soldier to carry. This device is capable of carrying out defensive interference against terrorists and criminals, simple remote-controlled radio devices commonly used and remote-controlled explosive devices modified from existing civilian wireless communication tools.
Applied Range
The overall structure of the equipment and interference frequency range are applicable to all areas of the country (including Xinjiang and Tibet special frequency),it is suitable for explosive ordnance disposal personnel to move or disposal of suspected radio-controlled explosive device, and it is suitable for the government VIP indoor and outdoor activities to follow the escort, as well as IED, EOD, SWAT, CAT.
Parameters
| No | Parameter | ||||
| 1 | Frequency range, power and target | Frequency range | Transmitted power | Antenna | Interfere with the target |
| 10-80MHz | 25 W | A:Fibre-glass epoxy antenna | Toy remote control | ||
| 130-230MHz | 25 W | B:Fibre-glass epoxy antenna | Intercom VHF frequency | ||
| 230-500MHZ | 25 W | C:Fibre-glass epoxy antenna | Wireless data transmission 315M interphone UHF | ||
| 500-800MHz | 25 W | D:Fibre-glass epoxy antenna | Wireless data transmission 433M interphone UHF | ||
| 800-1000MHz | 50 W | Built-in directional array antenna | Mobile CDMA, GSM voice services | ||
| 1000-2000MHz | 50 W | Mobile phone GSM voice, 4G Internet service | |||
| 2000-2200MHz | 25 W | 3G Internet service | |||
| 2200-2500MHz | 25 W | Indoor 4G Internet service and WIFI | |||
| 2500-3000MHz | 50 W | Indoor 4G Internet service | |||
| 3000-6000MHz(optional) | 25 W | All 5.8 G WIFI | |||
| 2 | Operating mode | Switch the machine on and off at one key | |||
| 3 | Transmitted power | 325W(include 5.8G) | |||
| 4 | Power Consumption | MAX800W | |||
| 5 | Power adaptability | AC220V/DC24-26V | |||
| 6 | Electromagnetic compatibility in accordance with the relevant provisions of GJB157A. | ||||
| 7 | DC incoming current | 20Amps&24VDC | |||
| 8 | Operation time | Unlimited (~ Hours).The built-in DC24V30AH power battery pack can support the equipment to work continuously for 60 minutes; | |||
| 9 | Built-in battery | DC24V&20AH can support continuous working for 60 minutes | |||
| 10 | Built-in charger | 29.5V&2A Maximum charging time is 5 hours | |||
| 11 | Main Unit weight(Contain antenna) | 34.5kg | |||
| 12 | Main unit size | 63*50*30cm, Antenna length: 96cm | |||
| 13 | Reliability and maintainability requirements | MTBF≥1000 hours,MTTR≤1 hour | |||
| 14 | Interference style | Frequency band block interference, sweep frequency interference | |||
| 15 | Working way | Sweep frequency, grooming spectrum and direct sequence spread spectrum are combined | |||
| 16 | Working pattern | Having full frequency working mode to meet the requirements of events. | |||
| 17 | Protection function | Rf output no-load and short-circuit protection;The internal power supply system has the functions of under-voltage, over-voltage, overload, short-circuit and other protection and acousto-optic alarm. | |||
| 18 | Interference distance | 20-100m(The distance is related to the base station distance and whether there is a mobile phone amplifier) | |||
| Note: It depends on the frequency of mobile phone in each country. | |||||
