2nd And 3rd Harmonics Nonlinear Detector 3.7v Voltage 7.8 Ah Capacity

2nd And 3rd Harmonics Nonlinear Detector 3.7v Voltage 7.8 Ah Capacity

Product Details:

Place of Origin: CHINA
Brand Name: HEWEI
Certification: YES
Model Number: HW24

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD/Set FOB shenzhen
Packaging Details: carton case
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 100 sets per month
Get Best Price Contact Now

Detail Information

Receiver Sensitivity: ≧ -108 DBm Adjustment Range Of The Probing Signal: 20dBm
Capacity: 7.8 Ah Operating Temperature: +5℃ ~ +40℃
Weight: ≦1kg Battery: Built-in Rechargeable Li-battery
2nd Harmonic Frequency: 4812 - 4828 MHz Maximum Continuous Radiation Power (CW): 300W
Signal Frequency: 2400 - 2483 MHz
High Light:

3rd harmonics nonlinear detector

,

3.7v voltage nonlinear detector

,

7.8 ah capacity nonlinear detector

Product Description

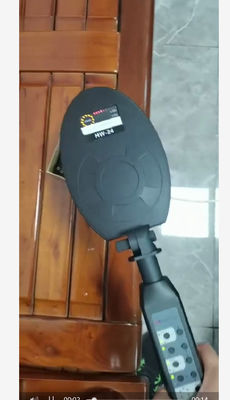

Non-Linear Junction Detector

The non-linear junction detector “HW-24” is used for search and location of electronic
devices both in active and switch-off state.
It is highly competitive with most popular models of non-linear junction detectors. It can
operate in continuous and pulse mode as well, having a variable power output.
Automatic frequency selection allows operation in complex electromagnetic environment.
The detector generates a response at the 2nd and 3rd harmonics when radiated by an
RF probing signal. Semiconductor components of artificial origin will display a higher
level on the second harmonic while corrosive semiconductor components of artificial
origin will have a higher level on the third harmonic respectively. An “HW-24” analyzes
the 2nd and 3rd harmonics response of the radiated objects, which enables a quick and
reliable identification of electronic devices and corrosive semiconductors.


Technical Specification

Transmitter
Signal frequency 2400 - 2483 MHz
Max. peak power of radiation in pulse mode 10W
Maximum continuous radiation power (CW) 300W
The adjustment range of the probing signal power 20dBm
Receiver
2nd Harmonic frequency 4812 - 4828 MHz
3rd Harmonic frequency 7218 - 7242 MHz
Receiver Sensitivity ≧ -108 dBm
Dynamic range ≧ 80 dBm
Power supply
Battery type Built-in Rechargeable Li-battery
Voltage 3.7 v
Capacity 7.8 Ah
Battery life 3 hours at max power in a pulsed mode
1 hour at max power in a continuous mode
Main Unit
Device dimension (in working condition) L47cm x W12.5cm x H6cm
Device dimension (in folding condition) L28cm x W12.5cm x H6cm
Device weight ≦1kg
Alarm mode Audible and Visual (LED indicator)
Operating temperature +5℃ ~ +40℃
