4812-4828 Mhz 2nd Harmonic Frequency Nljd Equipment Junction Detector

4812-4828 Mhz 2nd Harmonic Frequency Nljd Equipment Junction Detector

Product Details:

Place of Origin: CHINA
Brand Name: HEWEI
Certification: YES
Model Number: HW24

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD/Set FOB shenzhen
Packaging Details: carton case
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 100 sets per month
Get Best Price Contact Now

Detail Information

Device Dimension (in Working Condition): L47cm X W12.5cm X H6cm Capacity: 7.8 Ah
Receiver Sensitivity: ≧ -108 DBm Dynamic Range: ≧ 80 DBm
The Adjustment Range Of The Probing Signal Power: 20dBm Signal Frequency: 2400 - 2483 MHz
Device Weight: ≦1kg Alarm Mode: Audible And Visual (LED Indicator)
Voltage: 3.7 V
High Light:

4812mhz nljd equipment

,

4828mhz nljd equipment

,

junction detector nljd equipment

Product Description

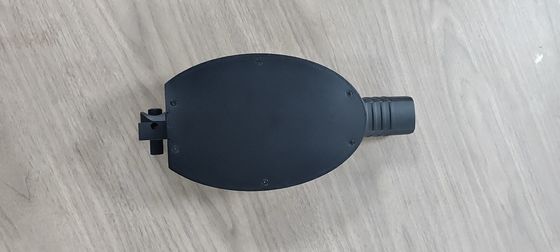

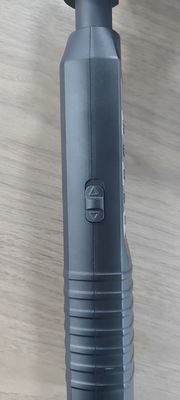

Non-Linear Junction Detector



Model: HW-24



The non-linear junction detector “HW-24” is used for search and location of electronic devices both in active and switch-off state.

It is highly competitive with most popular models of non-linear junction detectors. It can operate in continuous and pulse mode as well, having a variable power output. Automatic frequency selection allows operation in complex electromagnetic environment.

The detector generates a response at the 2nd and 3rd harmonics when radiated by an RF probing signal. Semiconductor components of artificial origin will display a higher level on the second harmonic while corrosive semiconductor components of artificial origin will have a higher level on the third harmonic respectively. An “HW-24” analyzes the 2nd and 3rd harmonics response of the radiated objects, which enables a quick and reliable identification of electronic devices and corrosive semiconductors.

The “HW-24” automatically finds the best receiving frequency channel free of noise and distortion providing flawless operation even in the complicated electromagnetic environment.

Its power output is harmless to operator’s health. Operation at higher frequencies makes it in some cases more efficient than detectors with standard frequencies but with greater power output.



Technical Specification

Transmitter
Signal frequency 2400 - 2483 MHz
Max. peak power of radiation in pulse mode 10W
Maximum continuous radiation power (CW) 300W
The adjustment range of the probing signal power 20dBm
Receiver
2nd Harmonic frequency 4812 - 4828 MHz
3rd Harmonic frequency 7218 - 7242 MHz
Receiver Sensitivity ≧ -108 dBm
Dynamic range ≧ 80 dBm
Power supply
Battery type Built-in Rechargeable Li-battery
Voltage 3.7 v
Capacity 7.8 Ah
Battery life 3 hours at max power in a pulsed mode
1 hour at max power in a continuous mode
Main Unit
Device dimension (in working condition) L47cm x W12.5cm x H6cm

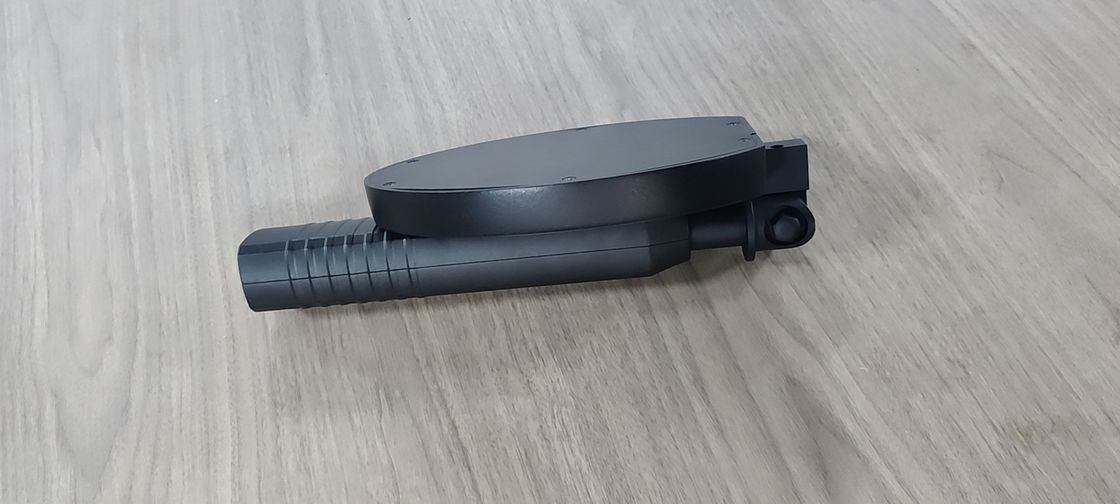

Device dimension (in folding condition) L28cm x W12.5cm x H6cm
Device weight ≦1kg
Alarm mode Audible and Visual (LED indicator)
Operating temperature +5℃ ~ +40℃
