910 * 650 * 500 MM Bomb Equipment Robot Cross 320mm Height Obstacle 90kg Weight
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HW-18 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD/Set FOB shenzhen |
| Packaging Details: | carton case |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Weight: | 90kg | Material: | Aircraft-grade Aluminum Alloy |
|---|---|---|---|
| Color: | Black | Over-obstacle Capacity: | It Can Cross The Obstacle Of 320mm Height. |
| Grade Ability: | It Can Climb Up The Slope Of 45° And Stop Steadily On The Slope. | Lift Capability: | It Can Move With Clamping Weights Of 40K And Will Not Drop (actual Measurement). |
| High Light: | eod tool kits,bomb equipment |
||
Product Description
EOD Robot
Model: HW-18
Description
EOD robot consists of mobile robot body and control system.

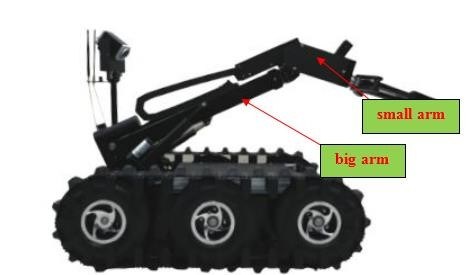

Mobile robot body is made up of box, electrical motor, driving system, mechanical arm, cradle head, monitoring system, lighting, explosives disrupter base, rechargeable battery, towing ring, etc.
Optional touch screen of control system is suitable for the beginners to operate. Optional accessories of EOD robot body: tail, wireless transmitting antenna, hardware tool (include cutter, hook, rake, drill and clipper).This robot can be used for explosive handling in conditions of complex topography. Its purpose is to replace explosive ordnance disposal personnel, carry and transfer suspicious explosive and other hazardous goods.
Technical Parameter
| Robot Body | |
| Materials | Aircraft-grade aluminum alloy, precision machining |
| Dimensions | L*W*H: 910 * 650 * 500 mm |
| Weight | 90kg (without accessories, package and control box) |
| Battery | DC24V lead acid rechargeable battery |
| Working time | ≥ 3 hours |
| Maximum Speed | ≥1.2m/s |
| Loading Capacity | When loading 140KG, it can move normally (actual measurement). |
| Lift Capability | It can move with clamping weights of 40K and will not drop (actual measurement). |
| Grade Ability | It can climb up the slope of 45° and stop steadily on the slope. |
| Climbing Stairs Ability | With traction-free assist, it can climb up and down the stairs of 160mm step height and 45°angle slope. |
| Turning Ability | In horizontal cement ground or bituminous pavement, the robot can turn clockwise or anticlockwise 360º. |
| Limited Passage Width | ≤700mm |
| Over-obstacle Capacity | It can cross the obstacle of 320mm height. |
| Max. Mechanical Arms Spread | 1650mm |
| Gripper of Manipulator Maximum Expansion Range | 250mm |
| Arm Extension when stretch out and draw back | 500mm |
| Control Distance | Wireless control: ≥150m (visible range); wire control: 100m (optional 200m); |
| Forward Camera | Color infrared induction |
| Backward Camera | Color infrared induction |
| Cradle Head Various focal Camera | Color infrared induction |
| Manipulator Gripper Camera | Color infrared induction |
| Floodlight | Two group LED floodlight (one group on the front and back) |
| Control Terminal | |
| Box | Portable, waterproof, dustproof, high strength |
| Size | ≤ L 460 * W 370 *H 260 mm |
| Weight | ≤ 10kg |
| Display Screen | 12-inch HB LCD, wide viewing angle, outdoor clear picture |
| Operation | High-quality rocker handle, human software interface design, easy observation and convenient operation |
| Display Image | It can monitor 4 video signals simultaneously or separately amplify one of 4 video signals |
| Battery | Rechargeable 24V lithium battery, working time ≥ 3 hours when fully charged. |
