Product Details:
Payment & Shipping Terms:
|
Weight: | 2.1kg | The Detecting Coil: | The Size Of Detecting Coil Is 273mm*200mm, Black ABS Material, Surface Is Treated With EMC, And A Hybrid RX Coil Is Used To Improve The Signal/noise Ratio. |
---|---|---|---|
Battery: | 3LEE LR20 Manganese Alkaline Dry Cell | Battery Life: | At Maximum Sensitivity - 12 Hours |
Operating Humidity: | Fully Enclosed And Be Able To Operate 2 M Under Water. | ||
High Light: | eod tools and equipment,eod device |

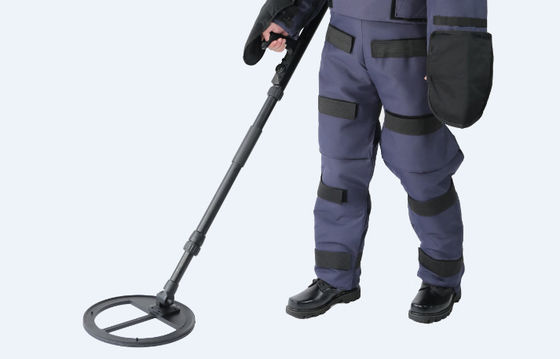

Mine Detector
Model: UMD-III
Description
This handheld UMD-III mine detector is a widely used (single-soldier operating) mine detector, which adopts high frequency pulse induction technology. It is of highly sensitivity, especially suitable for detecting minor metal mines with little time. Operators can use the device only after a short training for simple operation.
Features
Waterproof, which can be detected under water.
Being controlled by a microprocessor with accurate timing, fast conversion and strong signal processing capability.
Super sensitivity to identify very small metal objects.
Technical Parameters
Weight | 2.1kg |
Transport weight | 11 kg (device+case) |
The detecting pole length | 1100m~1370mm |
Battery | 3LEE LR20 Manganese Alkaline dry cell |
Battery life |
At maximum sensitivity - 12 hours At medium and low sensitivity - 18 hours Low voltage alarming by sound and light |
Operating humidity | Fully enclosed and be able to operate 2 m under water. |
Operating temperature | -25°C~60°C |
Storage temperature | -25°C~60°C |
The detecting coil | The longest detecting pole is 965mm, the shortest is 695mm, and weight 1300g. Glass resin telescopic rod, the surface is coated to protect the environment. The size of detecting coil is 273mm*200mm, black ABS material, surface is treated with EMC, and a hybrid RX coil is used to improve the signal/noise ratio. |
Sensitivity Testing
(Testing Center for Quality of Security & Police Electronics Products under M.P.S.China)
Item No. | Target Size |
Detection range at low level |
Detection range at medium level |
1 | 268x74x144mm | 30cm | 40cm |
2 | 298x78x186mm | 25cm | 36cm |
3 | 307x54x184mm | 16cm | 32cm |
4 | 347x82x195mm | 25cm | 33cm |
5 | 275x62x134mm | 17cm | 32cm |
6 |
Coin, D25mm 6gram |
7cm | 16cm |
