Product Details:
Payment & Shipping Terms:
|
Weight: | ≦1.05kg | Size: | 300mm × 106mm × 71mm |
---|---|---|---|
Alarming Method: | Visual / Audible / Vibration | Power Consumption: | 7.5W |
Rated Voltage: | 7.4V | Operating TEMP: | - 20 ℃ ~ 70 ℃ |
High Light: | hand held bomb detector,bomb detection devices |

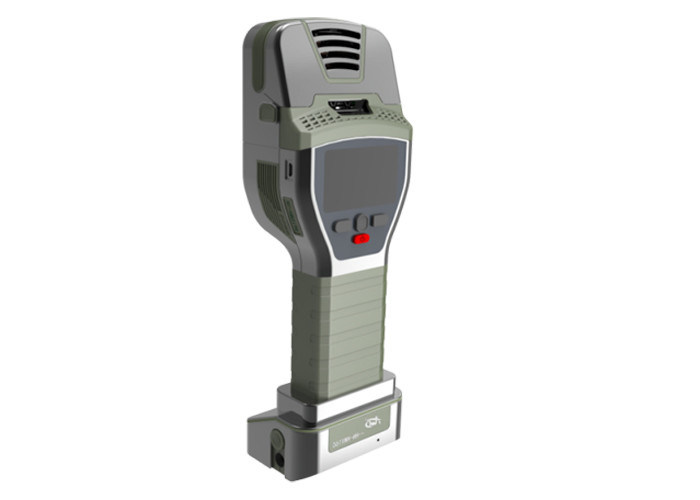

Handheld Trace Explosive Detector
Model: HWX16C
Description
The newly developed product is a portable trace explosive detector with great detection limit in the domestic and foreign markets. The continuous working time of single battery is more than 8 hours. The cold start time is within 10 seconds.The TNT detection limit is 0.05 ng level, and more than 30 kinds of explosives can be detected.
Features
Fluorescence based
Convenient operation
No radioactive source
Automatic calibration
High sensitivity and low false alarm rate
Quick start and detection speed
Broad explosive identification
Specifications
Technology | Amplified Fluorescent Polymer Quenching Sensor |
Analysis time | ≤5s |
Start-up time | ≤10s |
Sampling method | Particle and Vapor |
Detection Sensitivity | Particulate: TNT LOD ≤0.05ng |
Vapor: PPM | |
Operating TEMP | - 20 ℃ ~ 70 ℃ |
False alarm rate | ≤ 1% |
Power Consumption | 7.5W |
Display Screen | 3"TFT Color display Screen |
Com Port | USB2.0 |
Data Storage | ≥100000pieces of record |
Rated voltage | 7.4V |
Rated Capacity | 65.5Wh |
Rated Energy | 8850mAh |
Battery | Two Li-ion Rechargeable Battery |
Battery Working Time | Single battery time up to 8 hours |
Battery Charging Time | ≦3.5hours |
Alarming method | Visual / Audible / Vibration |
Dimensions | 300mm × 106mm × 71mm |
Weight | ≦1.05kg including battery |
Substances detected |
Military, Commercial, and Homemade Explosives including: TNT, DNT, MNT, Tetryl, HMX, C4, NA, AN, Black Powder, and others. |
