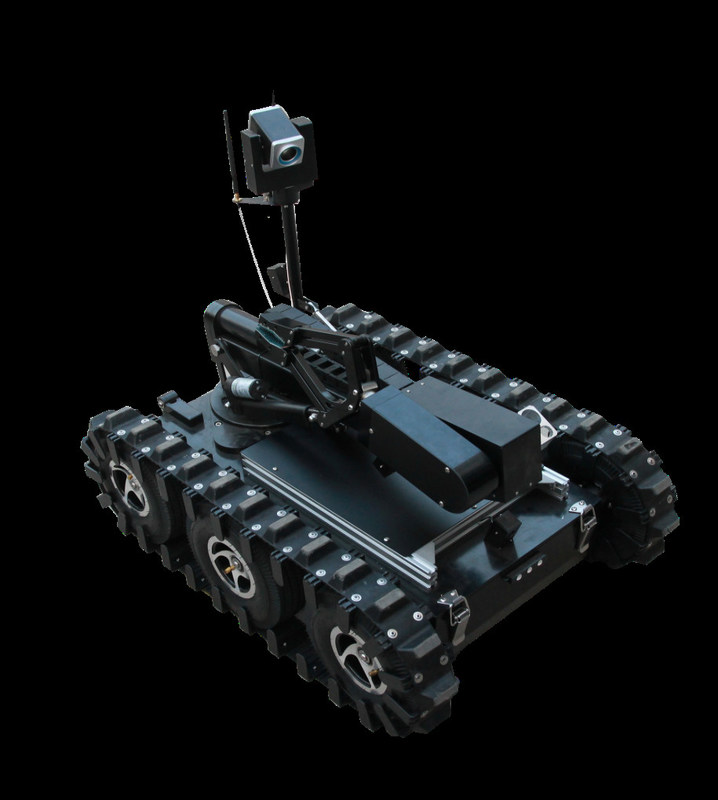

Small Size Disposal EOD Robot Explosive Ordnance With Aircraft - Grade Aluminum Alloy

China Small Size Disposal EOD Robot Explosive Ordnance With Aircraft - Grade Aluminum Alloy supplier
Small Size Disposal EOD Robot Explosive Ordnance With Aircraft - Grade Aluminum Alloy supplier Small Size Disposal EOD Robot Explosive Ordnance With Aircraft - Grade Aluminum Alloy supplier Small Size Disposal EOD Robot Explosive Ordnance With Aircraft - Grade Aluminum Alloy supplier Small Size Disposal EOD Robot Explosive Ordnance With Aircraft - Grade Aluminum Alloy supplier

Large Image :  Small Size Disposal EOD Robot Explosive Ordnance With Aircraft - Grade Aluminum Alloy

Product Details:

Place of Origin: made in china
Brand Name: HEWEI
Certification: CE,ROHS,ISO,etc
Model Number: HW-18

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: FOB Shenzhen / Beijing
Packaging Details: carton packaging, wooden case,etc
Delivery Time: 10-15 working days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Body Material: Aircraft-grade Aluminum Alloy, Precision Machining Weight: 92.8KG (without Accessories, Package And Control Box)
Dimension: Length 920mm * Width 625mm * Height 515mm Battery: DC24V Lead Acid Rechargeable Battery
Working Time: Not Less Than 5 Hours Maximum Mechanical Arms Spread: 1960mm
Maximum Movement Speed: 1m/s(Note: Remote Control, Stepless Speed Control.max Speed Is About 1m/s Based On 24V Battery.) Grade Ability: It Can Climb Up The Slope Of 45° And Stop Steadily On The Slope.
Load Capability: 160KG Drag Capability: ≥500N

                                          Explosive Ordnance Disposal (EOD) Robot


                 Small Size Disposal EOD Robot Explosive Ordnance With Aircraft - Grade Aluminum Alloy

Product Overview:

EOD robot consists of mobile robot body and control system.
Mobile robot body is made up of box, electrical motor, driving system, mechanical arm, cradle head, monitoring system, lighting, explosives disrupter base, rechargeable battery, towing ring, etc.
Mechanical arm is made up of big arm, telescopic arm, small arm and gripper. It is installed on kidney basin and its diameter is 220mm. Double electric stay pole and double air-operated stay pole are installed on mechanical arm; Cradle head is collapsible. Air-operated stay pole, Camera and antenna are installed on cradle head; Monitoring system is made up of camera, monitor, antenna, etc; One set of LED lights on the front of body and on the back of body; This system is powered by DC24V lead-acid rechargeable battery; Control system is made up of center control system, control box, etc.
Optional touch screen of control system is suitable for the beginners to operate. Optional accessories of EOD robot body: tail, wireless transmitting antenna, hardware tool (include cutter, hook, rake, drill and clipper).

Application environment:

  • Transfer and destruction of the suspicious objects in public places (metro, airport, railway station, shopping mall, conference center, etc.)
  • Applied in such environment as dud elimination, road-side bomb elimination and mine elimination, etc.
  • Material fetching and transfer under hazardous biological and toxic environment.
  • Reconnaissance, detection, material fetching and transfer within the ruins environment after
  • disaster.
  • Material fetching and transfer under nuclear radiation environment, simple detection and
  • maintenance work.



Technical Parameter:


Parameter NameParameter Index
Robot Body
Body MaterialAircraft-grade aluminum alloy, precision machining
Weight92.8KG (without accessories, package and control box)
DimensionLength 920mm * Width 625mm * Height 515mm
BatteryDC24V lead acid rechargeable battery
Working TimeNot less than 5 hours
Maximum Gripper Expansion Range255mm
Maximum Mechanical Arms Spread1960mm
Extensible Mechanical Arm Length500mm
Maximum Movement Speed1m/s(Note: remote control, stepless speed control.max speed is about 1m/s based on 24V battery.)
Grade AbilityIt can climb up the slope of 45° and stop steadily on the slope.
Climbing Stairs AbilityWith traction-free assist, it can climb up and down the stairs of 160mm step height and 45°angle slope.
Over-obstacle CapacityIt can cross the obstacle of 320mm height.
Turning AbilityIn horizontal cement ground or bituminous pavement, the robot can turn clockwise or anticlockwise 360º.
Limited Passage Width≥700mm
Load Capability160KG
Drag Capability≥500N
Grasping Capability10/40KG(stretch out and draw back ). It can move with clamping weights of 40KG and will not drop (actual measurement).
6 Mechanical Arm DOFs

Gripper opening and closing
Mechanical arm rotation
Small arm rotation
Telescopic arm extend and retract
Big arm rotation
Big arm rise and fall

Rotation Angle

Gripper can rotate clockwise and anticlockwise 360º;
Small arm can rotate clockwise 150º and anticlockwise 110º;
Big arm can pitch angle of 90º;
Kidney basin can rotate clockwise 180º and anticlockwise 45º

Number of Cameras4
Forward CameraColor infrared induction
Backward CameraColor infrared induction
Cradle Head Various focal CameraColor infrared induction
Gripper CameraColor infrared induction
FloodlightTwo group LED floodlight (each group on the front and back)
Control DistanceWireless control: ≥500m; wire control: 100m (optional 200m);
Control BoxVia the buttons and handle of control box, the operators can control video switch, zoom, moving, cradle rotating, floodlight, telescopic arm, gripper opening and closing, small arm rotating, big arm lifting, kidney basin rotating, wrist rotating, etc.
Anti-interference Performance

A. According to electrostatic discharge test of <electromagnetic compatibility test and measuring technique &Electrostatic discharge immunity test>, it reaches grade 3 of immunity requirements;
B.According to GB/T17626.3-2006 <electromagnetic compatibility test and measuring technique RFEMS test>, it passed the radio frequency electromagnetic fields radiation test, and reached grade 2 of immunity requirements;

Monitoring Cradle Head
Modular DesignCradle Head without any external interconnection can easily be removed from robot body.
Video RecordingCradle can record real-time video for easy viewing afterwards.
DOFs of Cradle Head

2 independent DOFs, adjustable rotation speed:
Cradle rotation: 360º continuously, maximum rotation speed of 130° per second;
Cradle pitching: -45°~ 120°, maximum pitching speed of 50° per second;

Operation Control Terminal
Control BoxPortable, waterproof, dust-proof, high strength
Dimension≤ L 460mm * W 370mm * H 260mm
Weight≤ 10kg
Display Size12-inch HB LCD, wide viewing angle, outdoor clear images
OperationHigh-quality rocker handle, human software interface design, easy observation and convenient operation
Show ImageIt can monitor 4 video signals simultaneously or separately amplify one of 4 video signals.
Information DisplayReal-time simulation shows the information of robot velocity, voltage, posture, etc.
BatteryRechargeable 24V lithium battery, working time ≥ 5.1 hours when fully charged.
Touch Screen ControlOptional touch screen control is suitable for the beginners to use.
