Single 2.4mm Pec Double Mine Metal Detector Surface Mounted Technology

Single 2.4mm Pec Double Mine Metal Detector Surface Mounted Technology
Single 2.4mm Pec Double Mine Metal Detector Surface Mounted Technology Single 2.4mm Pec Double Mine Metal Detector Surface Mounted Technology Single 2.4mm Pec Double Mine Metal Detector Surface Mounted Technology

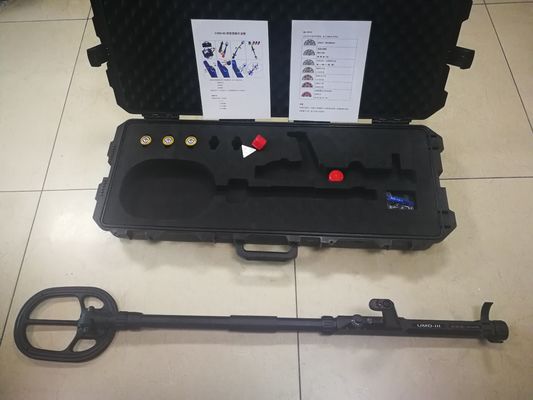

Large Image :  Single 2.4mm Pec Double Mine Metal Detector Surface Mounted Technology

Product Details:
Place of Origin: China
Brand Name: HEWEI
Certification: YES
Model Number: UMD-III
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1550-2000
Packaging Details: carton package.
Delivery Time: 15 working days
Payment Terms: T/T
Detailed Product Description
Name: Single 2.4mm PEC Double Surface Mounted Technology Mine Detector The Detector Type: One Probe One Plate
Battery: Rechargeable Lithium Battery Recharging Times: More Than 1000 Continue Working Time Of The Battery: About 18 Hours
Case: Black Plastic Nylon Case. The Detecting Pole Length: 1560mm~1120mm
Maximum Detection Range: 0.05g Stainless Steel Underground 75mm Operating And Storage Temperature: -25°C~60°C
High Light:

Pec Double Mine Metal Detector

,

Single 2.4mm Mine Metal Detector

,

Single 2.4mm Mine Detector

Single 2.4mm PEC double surface mounted technology Mine Detector

Mine Detector



Description:

The UMD- II is a versatile multi-purpose metal detector suitable for police, military and civilian users. It addresses requirements for crime scene and area searching, explosive ordnance clearance. It is approved and used by police services around the world. The new detector introduces simplified controls, an improved ergonomic design and advanced battery management. It is weather resistant and designed to withstand extended periods of use in harsh environments while provide a high level of sensitivity.

The detector is particularly easy to be operated, with simple and intuitive controls. The instrument is made ready simply by selecting the required sensitivity level from one of three preset levels.

For operator confidence, a status LED illuminates green when the unit is on and operating correctly .Target detection is indicated by an intuitive LED array and audio tone, delivered by an internal sounder or optional earpiece.

The detector is microprocessor controlled, performed continual background diagnostics and advanced power management functions.

The UMD- II includes easily interchangeable detection heads: a robust halo for rapid area search, a probe for searching drains, culverts, hedges and undergrowth. The electronics are assembled and tested by computer controlled equipment for a high degree of reliability and are housed in a slim, rugged and ergonomic case.



Single 2.4mm Pec Double Mine Metal Detector Surface Mounted Technology 0

Key Features

Target detection indicated via LED display and audio tone. Three preset sensitivity levels.

Interchangeable detection heads: Halo for rapid area search, Probe for drains & culverts. Automatic self-test and calibration for operator confidence and ease of use. Optimised power consumption. Low battery indication.



Specification:

Electronic Technique Single 2.4mm PEC double surface mounted technology, the processor is based on 8-bit 2*RISC ADC(8-bit 2*instruction set AD converter).
The Detector Type

One probe

One plate

Battery

Rechargeable Lithium Battery

Recharging Times: More than 1000

Continue Working Time of the Battery About 18 hours
Case Black plastic nylon case.
Case Weight 5Kg
Operating Weight 2.3 Kg
The detecting pole length 1560mm~1120mm
Detection Performance It can detect 72 type anti-infantry mine underground 100mm, detect 9mm bullet underground 250mm
Maximum Detection Range 0.05g stainless steel underground 75mm
Operating and Storage temperature -25°C~60°C

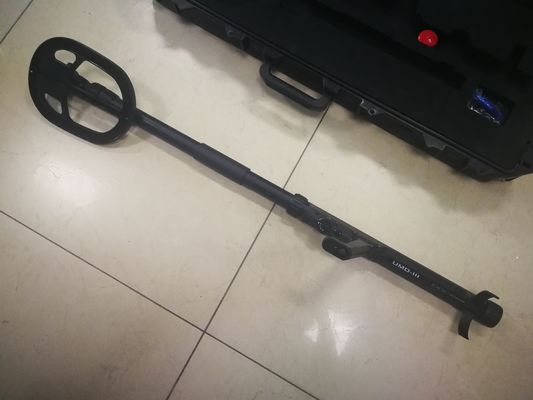

Single 2.4mm Pec Double Mine Metal Detector Surface Mounted Technology 1

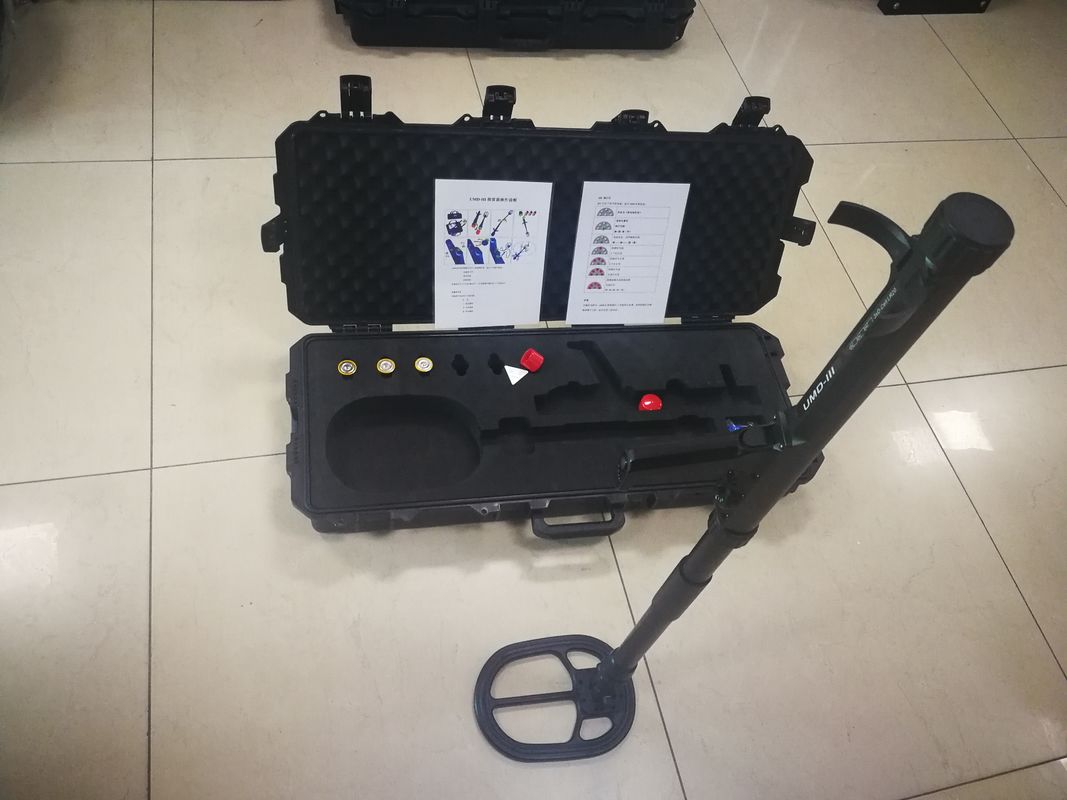

Single 2.4mm Pec Double Mine Metal Detector Surface Mounted Technology 2





Single 2.4mm Pec Double Mine Metal Detector Surface Mounted Technology 3



Single 2.4mm Pec Double Mine Metal Detector Surface Mounted Technology 4
