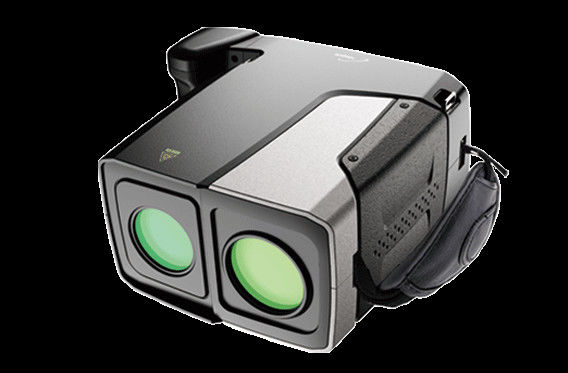

Handheld Night Vision 2000m Evidence Collector

Handheld Night Vision 2000m Evidence Collector
Handheld Night Vision 2000m Evidence Collector Handheld Night Vision 2000m Evidence Collector Handheld Night Vision 2000m Evidence Collector

Large Image :  Handheld Night Vision 2000m Evidence Collector

Product Details:
Place of Origin: China
Brand Name: HEWEI
Certification: YES
Model Number: TW100
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 9500~12000
Packaging Details: carton package
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 30 pieces per month
Detailed Product Description
Name: Long Detection Range Handheld Night-vision Evidence Collector Daytime, Detection Range:: 2000m (human: 1.7m*0.5m)
Identification Distance: 300m (human Facial Features And License Plates) Detection Range In Night: 600m (human: 1.7m*0.5m)
Sensor Type: 2 Megapixel, 1/2.8" Progressive Scanning CMOS; 2 Megapixel, 1/2.8%22 Progressive Scanning CMOS;: F=4.5-160mm, Optical Zoom And Intelligent Autofocus;
High Light:

2000m Evidence Collector

,

2km Evidence Collector



Hidden photographing and video recording · Long detection range Handheld Night-vision Evidence Collector



Handheld Night-vision Evidence Collector





Hidden reconnaissance, clear evidence collection, emergency command and efficient case handling!





Introduction:

Handheld night-vision evidence collector is a new-generation product developed and designed for law enforcement officers to long-distance monitoring and evidence collection at day and night. Highly integrated with GPL laser lighting (no red light) patented technology, ultra-high definition imaging technology, license plate intelligent recognition technology, long-distance encrypted transmission technology and other technologies, it can be used for night investigation, search and evidence collection, and hidden video recording. It has the features of portability, intelligent operation, long working distance and high practical applicability.

Handheld Night Vision 2000m Evidence Collector 0



                                       Handheld Night Vision 2000m Evidence Collector 1

HD display: High-definition full-color 5 inch 1920 * 1080 display screen, the picture effect is clear and delicate;2. Long detection range: The longest detection range during the day is 2000 meters, and the longest detection distance at night is 600 meters;3. Clear night vision: Human face and license plate number can be seen clearly within 300 meters at night;4. Synchronous playback and recording: Playback can be performed simultaneously during recording without interrupting the recording;5. Hidden photographing and video recording: 940nm red-exposed military-grade laser is used, which is invisible to the naked eye, thus effectively preventing exposure of law enforcement officers;6. One-key capture of license plate: One-key capture of license plate can be achieved within 150m-200m at the night;7. Laser linkage technology: Camera zoom and laser lighting, simultaneous zoom in and out in to achieve precise linkage;8. Multiple control modes: Support local buttons, remote control, and APP operation;9. Multiple transmission modes: Interexchanger (which can be connected with national secret 4G equipment), wifi, network port, USB, video, audio input and output10. Mass memory: Built-in 240G extra-large solid state drive (expandable to 2T).



IV. Detection Range

1. Daytime

  • Detection range: 2000m (human: 1.7m*0.5m)
  • Identification distance: 600m (human facial features and license plates)

2. Nighttime

  • Detection range: 600m (human: 1.7m*0.5m)
  • Identification distance: 300m (human facial features and license plates)



This product is applicable to all-weather detection, long-distance locking, real-time tracking and remote video capture of specific areas or targets, such as public security, narcotics squad, judicial administration, customs, jail, frontier, oil field, criminal investigation, national treasure, field rescue, ecological environment protection, wildlife protection and long-distance patrol inspection.

VIII. Technical Parameters

Model TW100
Operating range Daytime: 2000m/nighttime: 600m
Identification distance Daytime: 600m/ nighttime: 300m
Focal length of lens Sensor type 2 megapixel, 1/2.8" progressive scanning CMOS;
Focal length f=4.5-160mm, optical zoom and intelligent autofocus;
Magnification times 35 times;
Color pattern Integrated ICR dual-optical filter switching between daytime and nighttime;
Resolution ratio 1920*1080;
Minimum illumination 0.0001lux;
Laser illuminator Power 4W;
Wave length 940nm (860nm optional);
Illumination angle 2.2-62° continuously adjustable, digital drive control technology;
Control Automatic zoom according to the lens magnification, manual control is permitted
Display 5-inch 16:9 ISP screen, resolution ratio: 1920*1080;
Power consumption ≤20W;
Environmental index Operating temperature -40℃-+60℃;
Storage temperature -45℃-+70℃;
Vibration/shock In line with GA/T 1127-2013 technical requirements;
Dimension (L×W×H) 200mm×182mm×96mm;
Host weight 2.35kg;
Battery capacity 5000mAh;
Continuous working period 3 hours (Laser ON); 8 hours (Laser OFF)
Built-in module WiFi and 4G module;
Interface Video RJ45 and Video;
Audio Audio input, audio output;
USB USB3.0;
Power 16.8V;
Storage unit Video format AVI and DAV;
Image format JPEG;
Storage media 240G Large-capacity solid state drive (expandable to 2T);
Operation mode Short range Host button;
Remote Remote control, electronic equipment connected to WiFi, 4G;
Shell Material Aluminum alloy (integrated mold);
Structure Ergonomic design, tilt screen, SLR handle, buttons;
Protection class IP66;
Accessories Carbon fiber tripod;
3D manual console;
AC220V to DC16.8V charger;
20m remote control
  USB-HUB4-PORT
  Network cable
  Audio and video cable

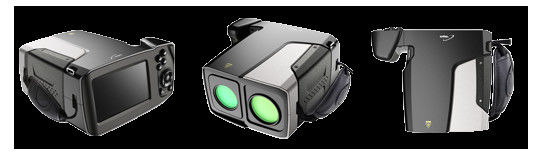

Handheld Night Vision 2000m Evidence Collector 2



Handheld Night Vision 2000m Evidence Collector 3



Handheld Night Vision 2000m Evidence Collector 4
